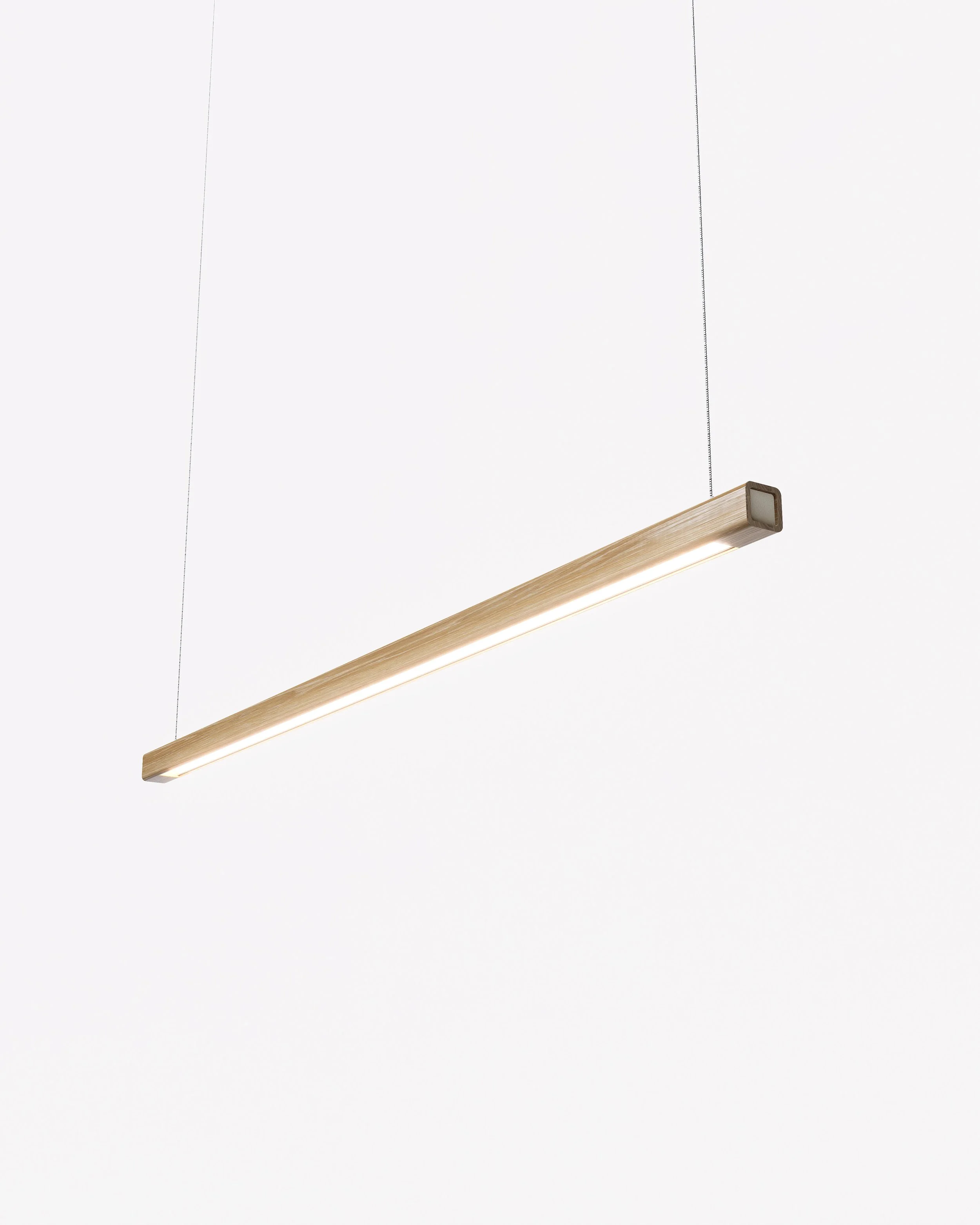

Linear Eco
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔

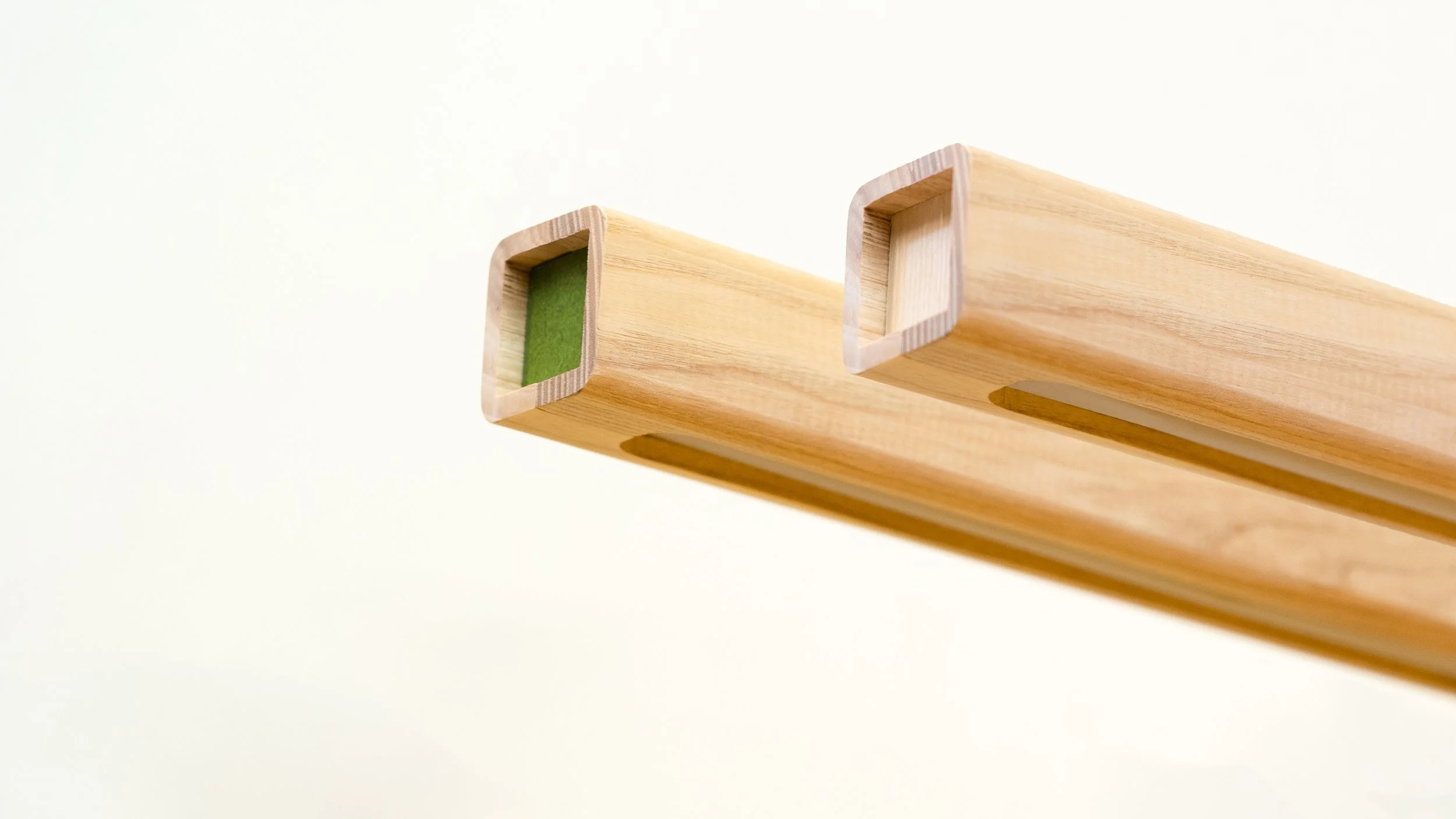

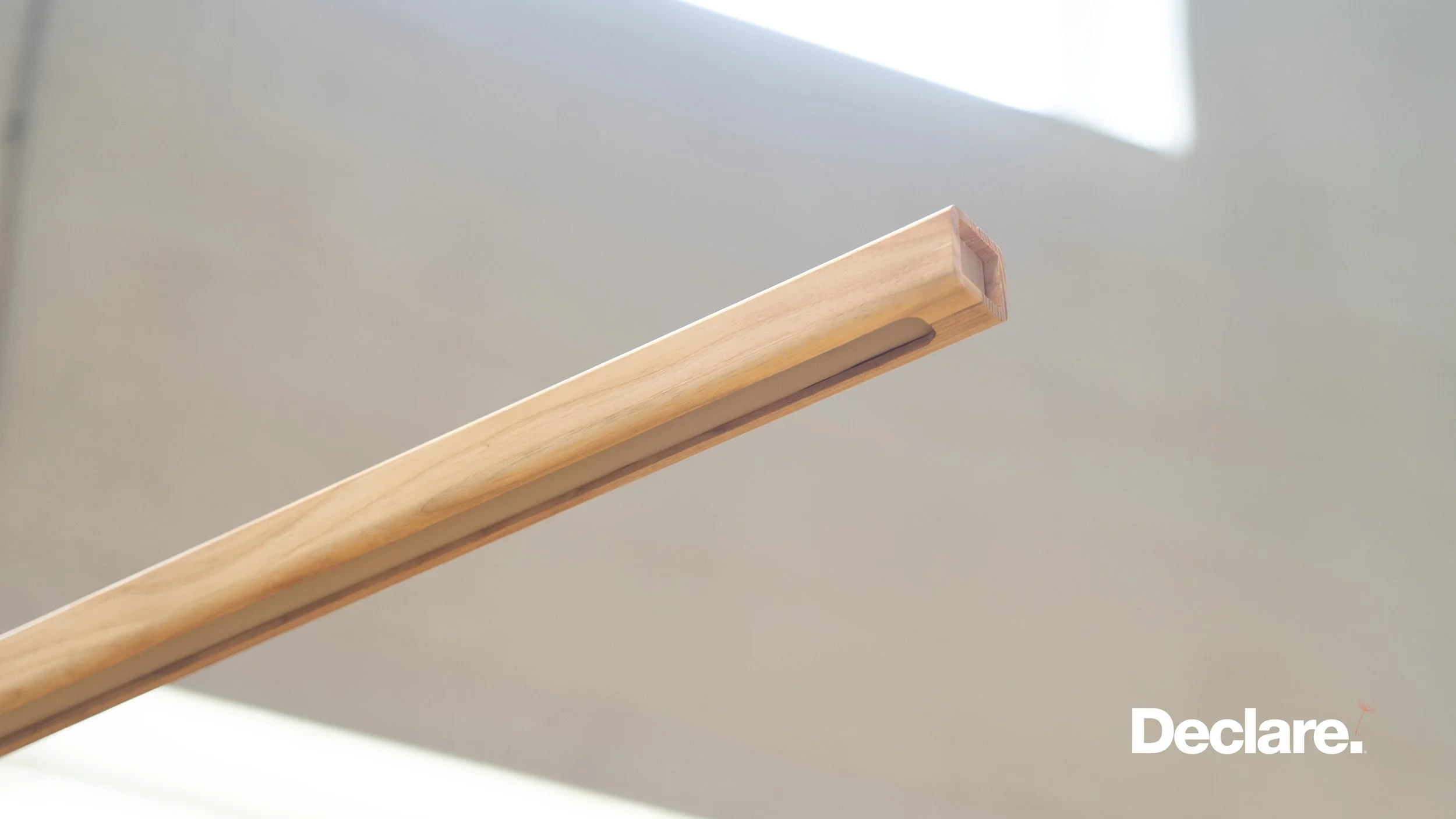

The Linear Eco is a cost-effective solution for projects of any scale. All of its components have been meticulously selected to be California Proposition 65 free within a slim profile and a subtle pop of colour with 100% natural acoustic felt end caps.
SERIES: LW-EB
MODEL: ECO
LUMEN OUTPUT: 650 lm/ft ± 10% based on CCT at 80 CRI
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 7.3 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Linear Eco is a cost-effective solution for projects of any scale. All of its components have been meticulously selected to be California Proposition 65 free within a slim profile and a subtle pop of colour with 100% natural acoustic felt end caps.
SERIES: LW-EB
MODEL: ECO
LUMEN OUTPUT: 650 lm/ft ± 10% based on CCT at 80 CRI
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 7.3 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Linear Eco is a cost-effective solution for projects of any scale. All of its components have been meticulously selected to be California Proposition 65 free within a slim profile and a subtle pop of colour with 100% natural acoustic felt end caps.
SERIES: LW-EB
MODEL: ECO
LUMEN OUTPUT: 650 lm/ft ± 10% based on CCT at 80 CRI
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 7.3 W/ft
OPTICS: Polycarbonate tube diffuser
-
SUSTAINABLE
Our products consist of 100% recyclable fixture components.
CUSTOMIZABLE
LW-EB offers the most upgrades for one product with various specifications to curate your product and custom profiles per request. -
PROFILE
1-1/2"W x 1-1/2"H
LENGTH
Min. 1’ - Max. 8’, Increments of 1’
LIGHT DISTRIBUTION
Direct
PROGRAMMABLE DRIVER ➔
Remote
Powered CanopyCIRCUIT
1
DIMMING
0-10V
TRIAC/ELV
DALI
LUTRON Ecosystem
COLOUR TEMPERATURE ➔
3000K, 80 CRI
3500K, 80 CRI
4000K, 80 CRI -
CANOPY
Black
White
CustomCABLE - REMOTE [LOW VOLTAGE]:
Clear Jacket with Silver Core
CABLE LENGTH:
5' [Standard]
Custom
MOUNTING OPTIONS - REMOTE ➔
Power Over Cable
Junction Box -
-
MATERIALS + FINISHING
SURFACE FINISH

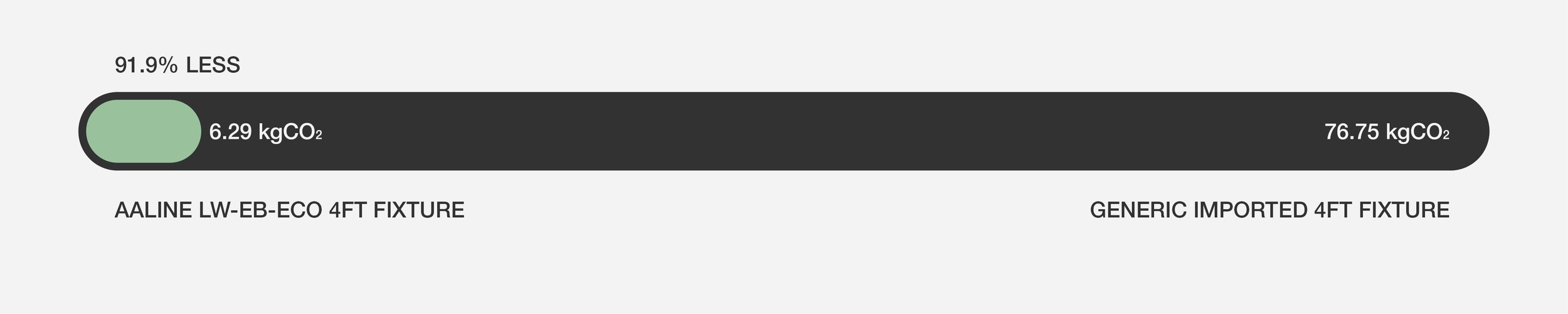

CARBON FOOTPRINT ESTIMATE
These values were determined using the 2030 calculator. The four categories that were considered are: materials, packaging, energy, and transportation.
