Linear Continuous
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔

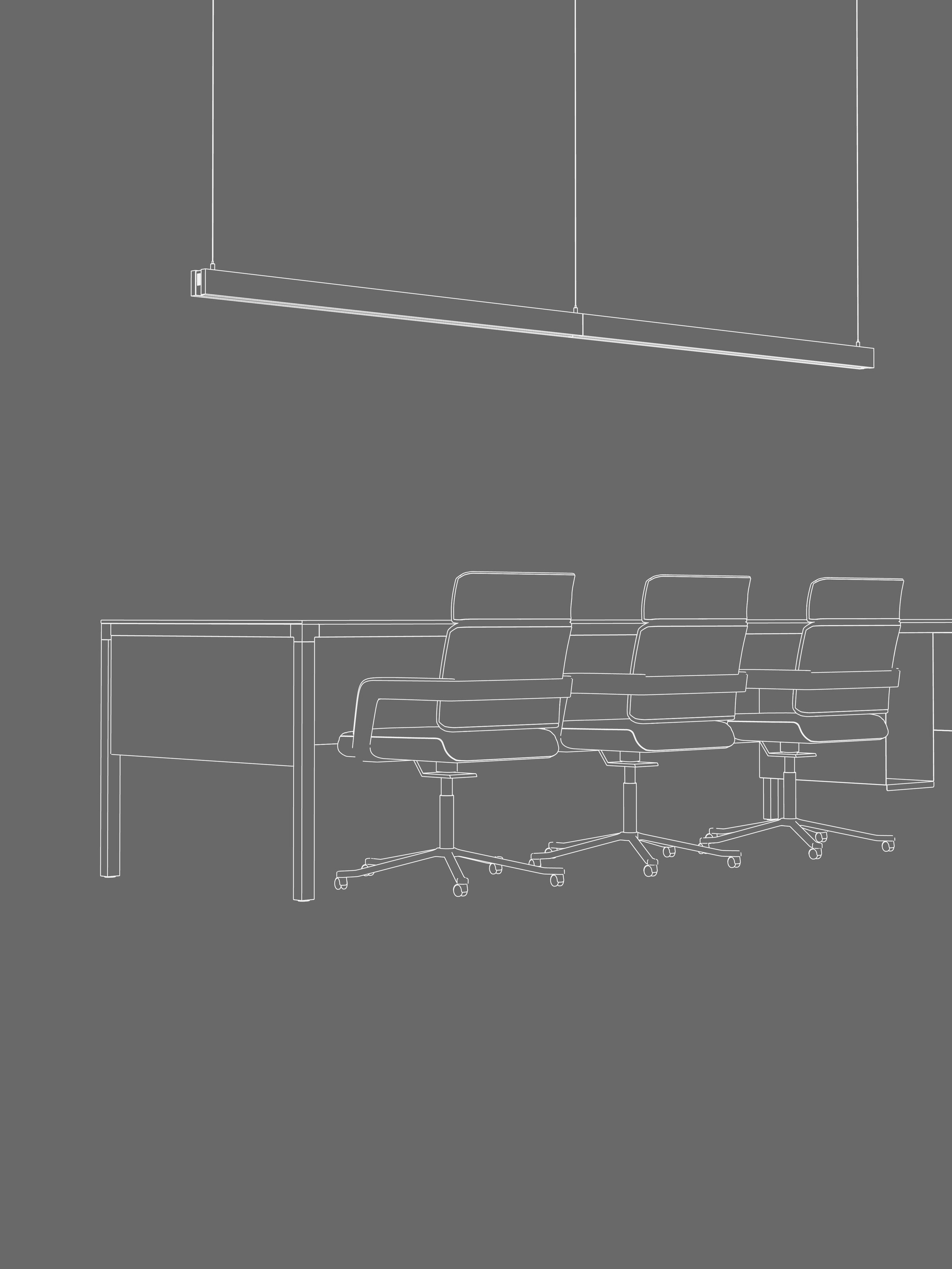

aaline’s Linear Continuous (LW-EB-LC) system is made for long runs of uninterrupted illumination through modular design. This system of virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures or dynamic whites.
SERIES: LW-EB
MODEL: LC
LUMEN OUTPUT:
Opal | 460 lm/ft, 40 lm/W
High-Efficacy | 736 lm/ft, 64 lm/W
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 10 W/ft
OPTICS: PET film diffuser
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Linear Continuous (LW-EB-LC) system is made for long runs of uninterrupted illumination through modular design. This system of virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures or dynamic whites.
SERIES: LW-EB
MODEL: LC
LUMEN OUTPUT:
Opal | 460 lm/ft, 40 lm/W
High-Efficacy | 736 lm/ft, 64 lm/W
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 10 W/ft
OPTICS: PET film diffuser
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Linear Continuous (LW-EB-LC) system is made for long runs of uninterrupted illumination through modular design. This system of virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures or dynamic whites.
SERIES: LW-EB
MODEL: LC
LUMEN OUTPUT:
Opal | 460 lm/ft, 40 lm/W
High-Efficacy | 736 lm/ft, 64 lm/W
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 10 W/ft
OPTICS: PET film diffuser
-

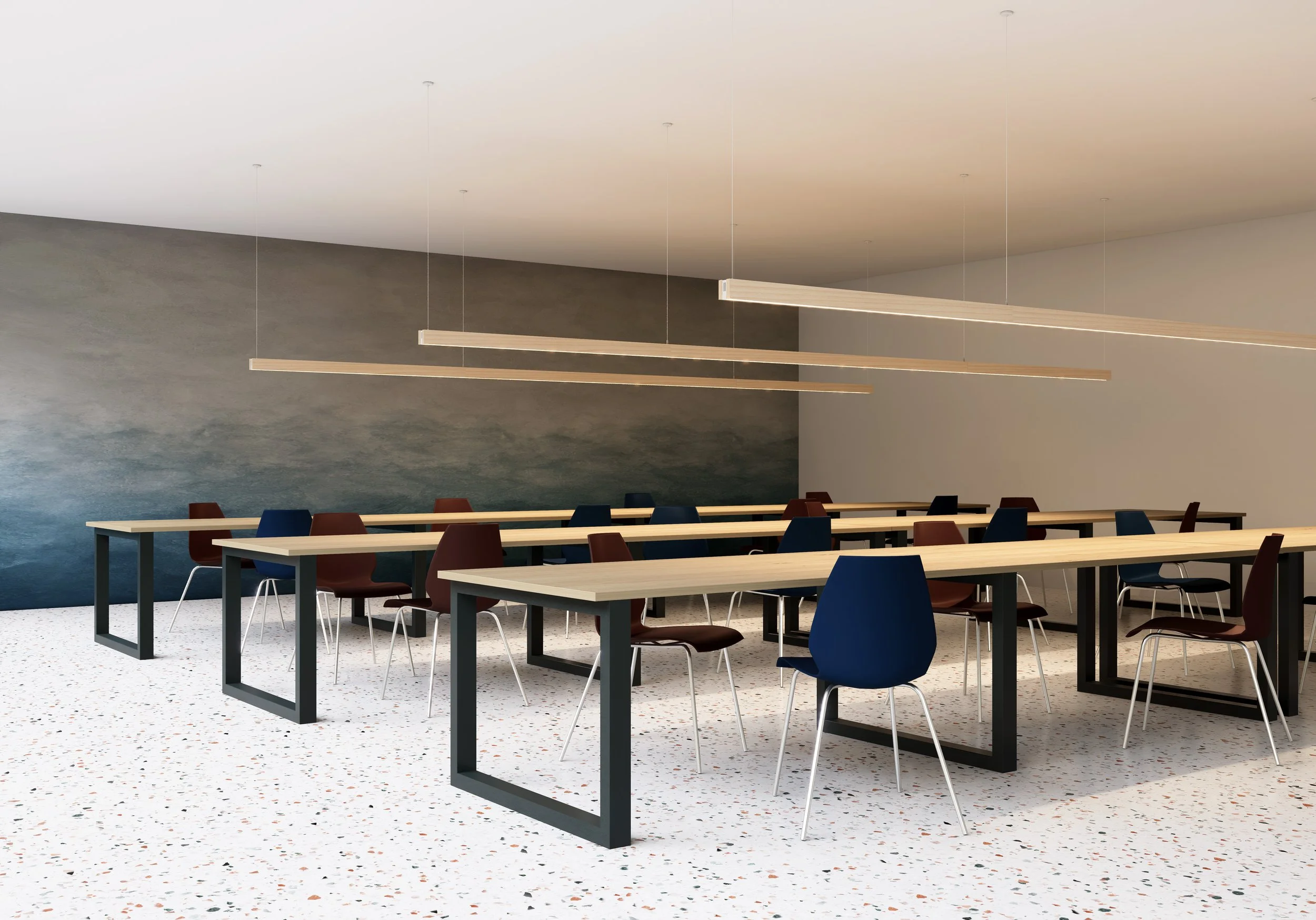

LARGE SCALE DESIGN

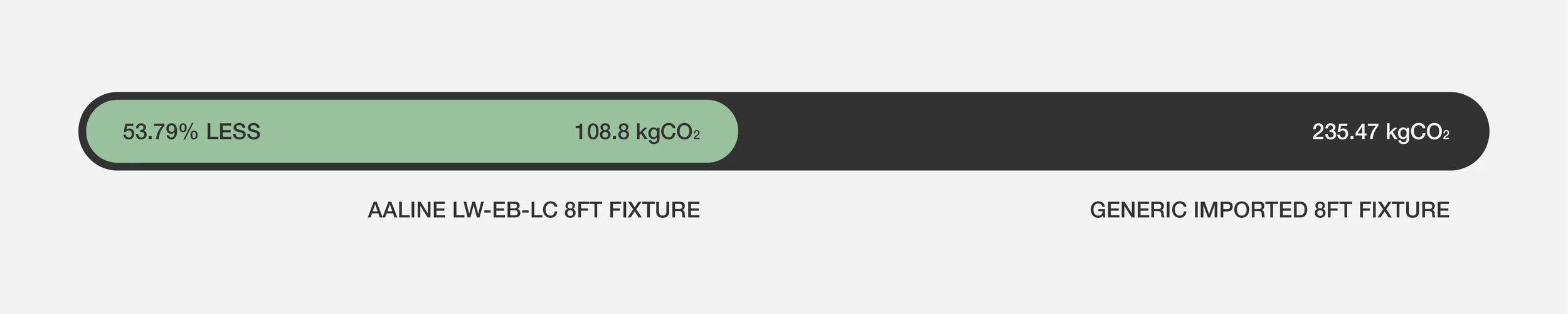

The LW-EB-LC is refined to suit larger scale commercial and institutional projects with high-end detailing and sustainable, quality materials with one of the lowest carbon footprints in the industry.Modular construction of the units allow for localized repairs as a part of our commitment to sustainable design and right to repair.
CUSTOMIZABLE + MODULAR
Envisioned by aaline's design team, the system is designed as a kit of parts that can be customized and fine-tuned to look and perform exactly as required by the project designers, engineers, and architects.HIGH-PERFORMANCE TECHNOLOGY
With integrated or remote driver systems as part of our standard collections, aaline can be the kit of parts spec-able in retrofit remodeling or new construction projects.SUSTAINABLE
Our products consist of 100% recyclable fixture components. -
PROFILE
2-1/2"W x 2-3/4"H

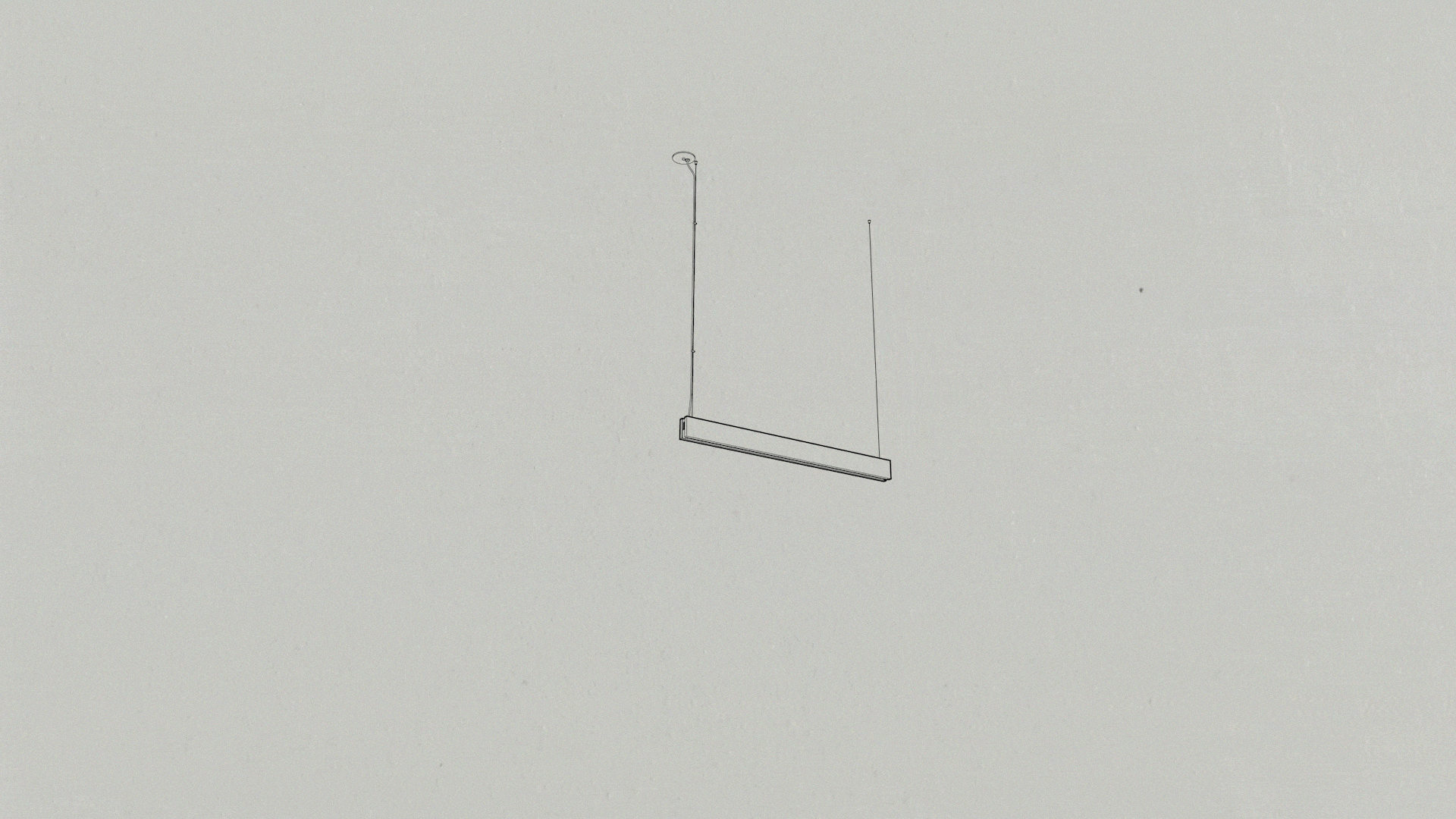

LENGTH
Min. 3’ - Infinite, Increments of 1'
Visible seam where modules meet, up to every 8'
Power supply every 16'LIGHT DISTRIBUTION
Direct
Indirect
Direct + Indirect, Indirect is 1/3 of lm/ftPROGRAMMABLE DRIVER ➔
Integrated
Remote
OPTICS
Opal | 460 lm/ft, 40 lm/W
High-Efficacy | 738 lm/ft, 64 lm/W
Anti-Glare | UGR<18*
*Selecting both AG options further improves UGR rating
CIRCUIT
1
2, only available for Direct + IndirectDIMMING
0-10V
TRIAC/ELV
DALI
LUTRON Ecosystem
COLOUR TEMPERATURE ➔
2700K
3000K
3500K
4000K
Dim-To-Warm
Tunable White
INTEGRATED SENSOR
Daylight Sensor
PIR Occupancy Sensor
Daylight + Occupancy Sensor
Will be Lutron Sensor if Lutron EcoSystem dimming is selected -
CANOPY
Black
White
CustomCABLE - INTEGRATED [HIGH VOLTAGE]:
Black
White
CABLE - REMOTE [LOW VOLTAGE]:
Clear Jacket with Silver Core
CABLE LENGTH:
5' [Standard]
Custom
MOUNTING OPTIONS - INTEGRATED ➔
Independent
Junction Box Support
T-Bar Support, for 15/16” t-bar width
MOUNTING OPTIONS - REMOTE ➔
Power Over Cable
T-Bar Support, For 15/16” t-bar width
CANOPY HARDWARE - JUNCTION BOX ONLY
Minimal
Match -
-

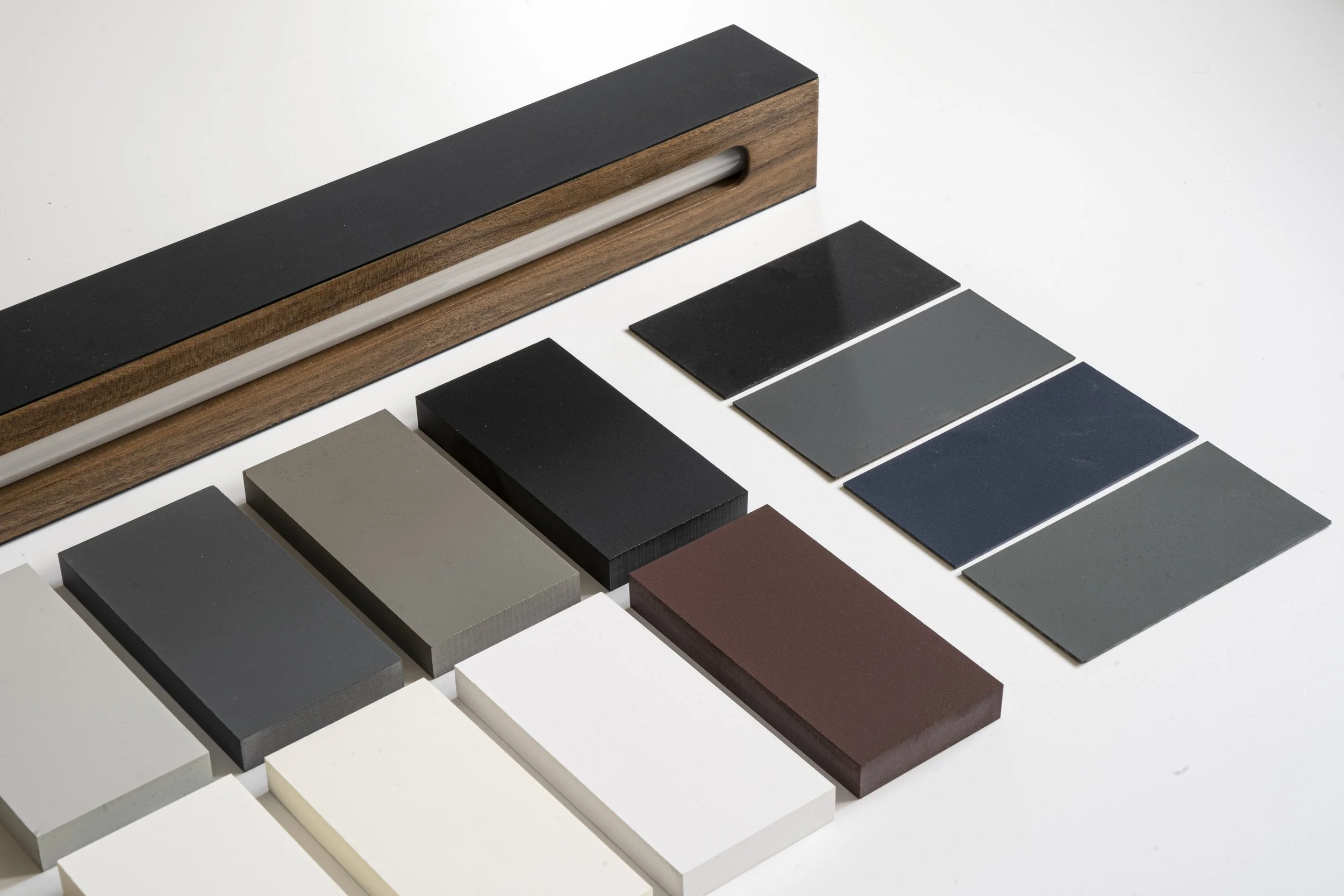

MATERIALS + FINISHING
