aaline designs and manufactures specification-grade lighting + acoustic systems to create comfort in the built environment. They are a B-Corp Certified organization producing quality at scale with skilled craftsmanship, in-house fabrication technology, and a studio environment curated for exploration.

VIEW COLLECTION ➔

NEW

focus series

new

BUILD CANADA HOMES INITIATIVE

NEW

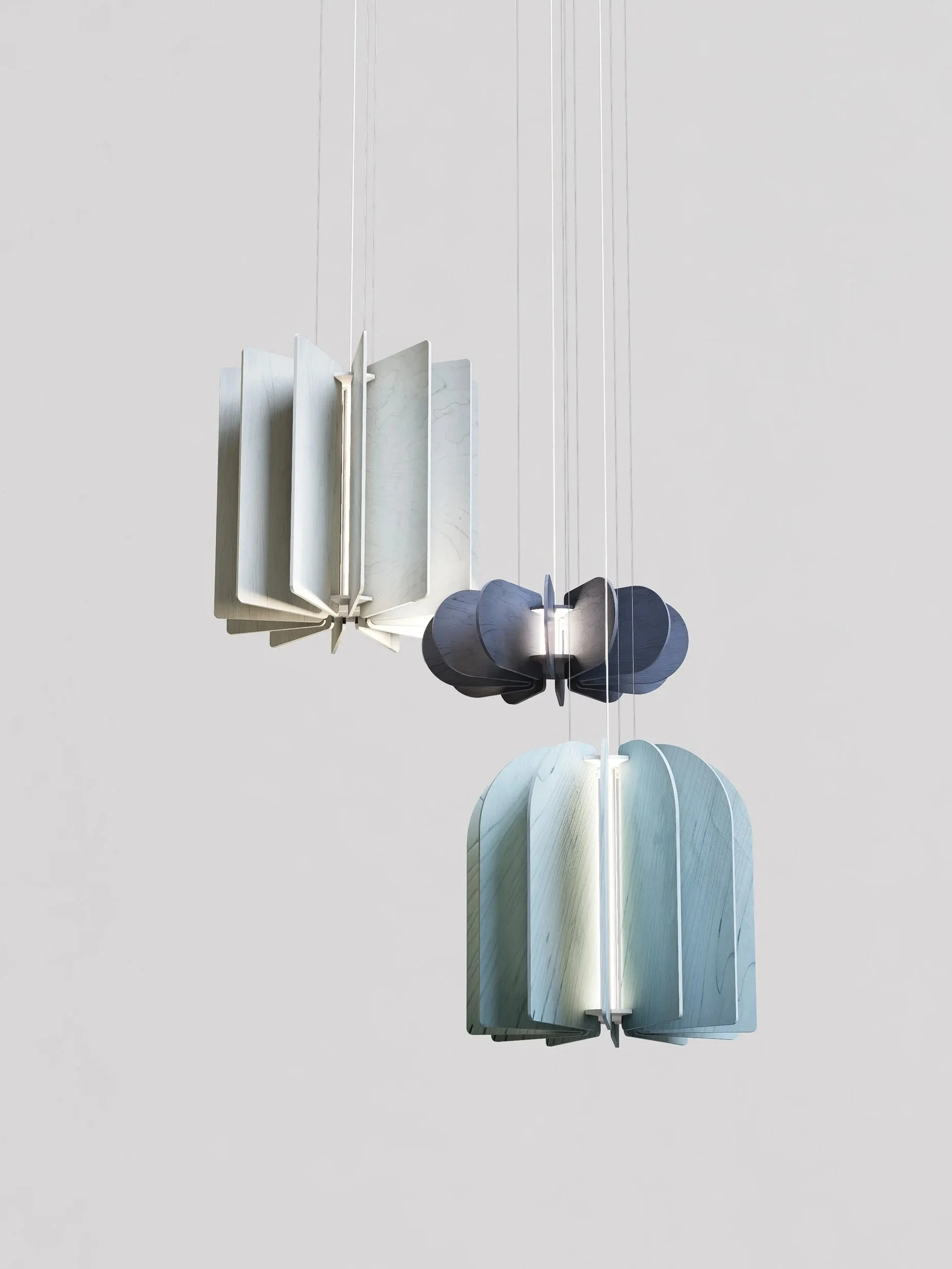

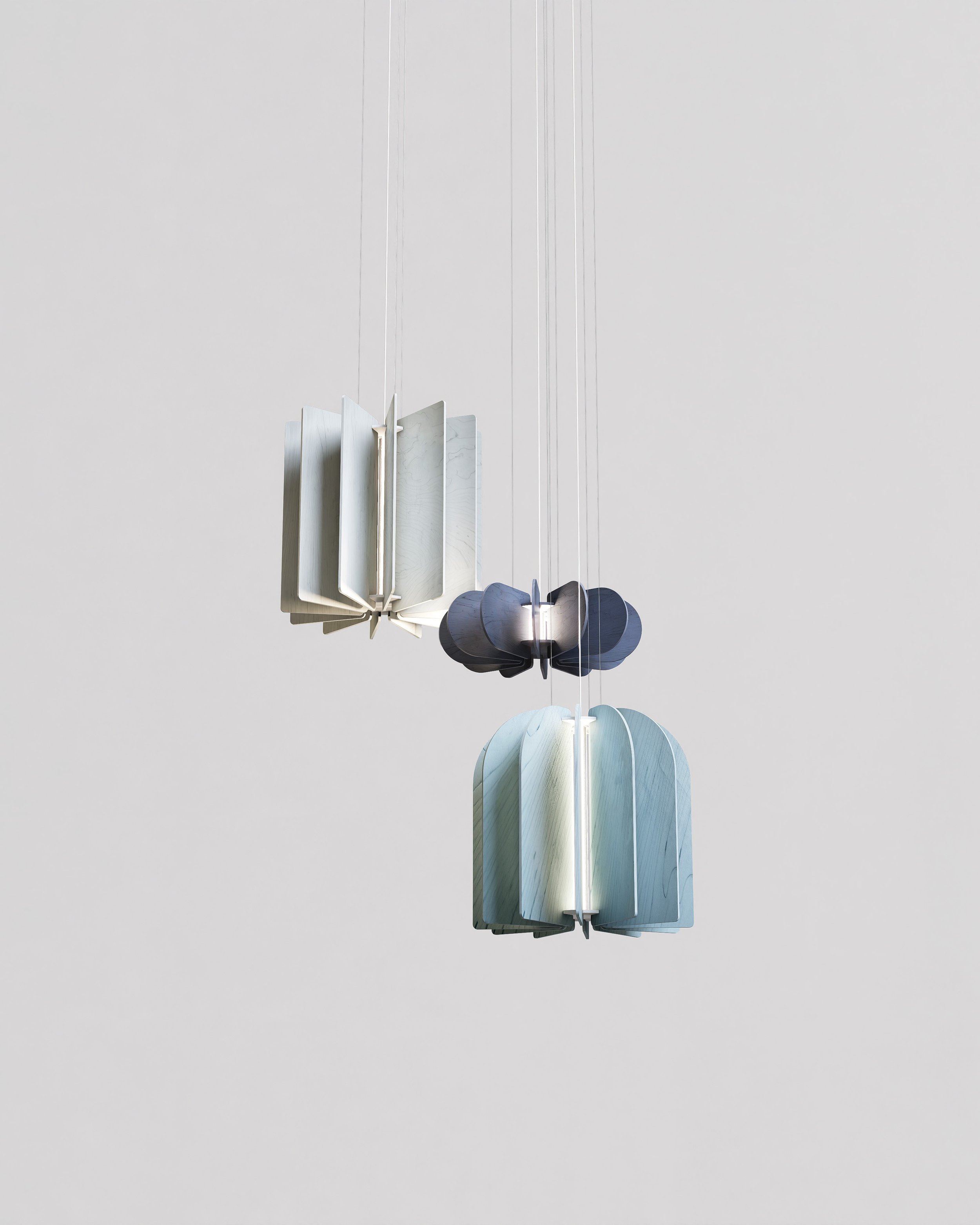

STAR PENDANT | NOW IN PAINTED

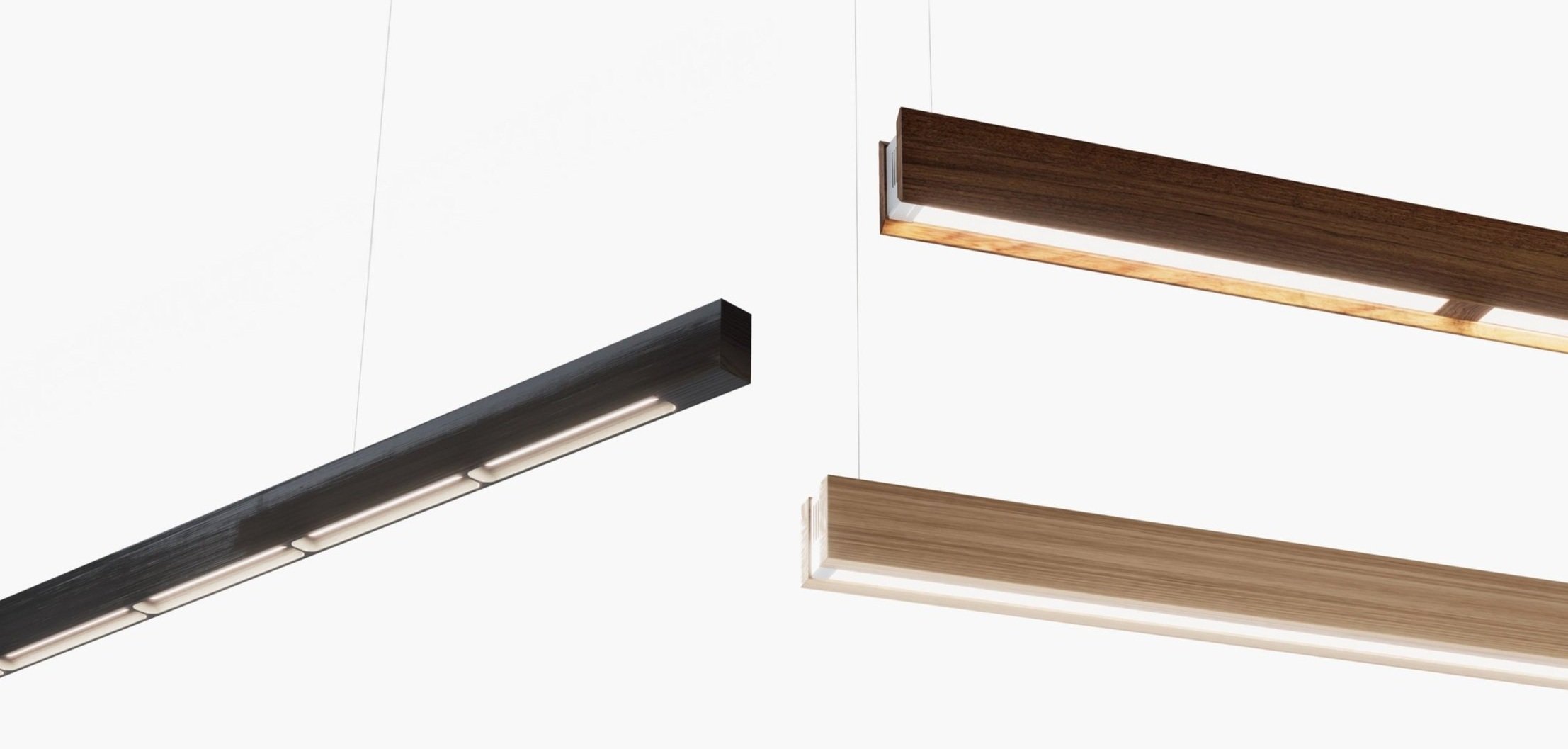

Linear Series

aaline lighting fixtures are made with FSC-certified hardwood available in various upgrades and finishes. We offer robust systems with custom specifications to design the perfect fixture for any space

LINEAR SERIES BROCHURE ➔

Architectural

Focus Single

$0.00

aaline’s FOCUS Series is designed for precision lighting, carved out of a single block of hardwood. Each fixture is enhanced with aaline’s proprietary anti-glare carved visors (UGR <16) and 90+ CRI LED chips, available in various editions to suit the look of any space.

[divider]

SERIES: Linear Embedded
MODEL: Focus
EDITION: Single
LUMEN OUTPUT:
LO
4': 600 lm | 4.4 W | 135 lm/W
6': 900 lm | 6.5 W |135 lm/W
ST
4': 900 lm | 6.6 W | 135 lm/W
6': 1350 lm | 9.8 W | 135 lm/W
HI
4': 1200 lm | 8.7 W | 135 lm/W
6': 1800 lm | 13.1 W | 135 lm/W
POWER INPUT: 120 VAC, 50/60 Hz
DIMMING CONTROL: 0-10V, TRIAC/ELV, DALI

[divider]

NEED SOMETHING CURATED?

Check out our designer product for streamlined, ready-to-order options: Focus Single Standard

Read more →

Focus Double

$0.00

aaline’s FOCUS Series is designed for precision lighting, carved out of a single block of hardwood. Each fixture is enhanced with aaline’s proprietary anti-glare carved visors (UGR <16) and 90+ CRI LED chips, available in various editions to suit the look of any space.

[divider]

SERIES: Linear Embedded
MODEL: Focus
EDITION: Double
LUMEN OUTPUT:
LO
4': 1200 lm | 8.7 W | 135 lm/W
6': 1800 lm | 13.1 W | 135 lm/W
ST
4': 1800 lm | 13.1 W | 135 lm/W
6': 2700 lm | 19.6 W | 135 lm/W
HI
4': 2400 lm | 17.5W |135 lm/W
6': 3600 lm | 26.2 W |135 lm/W
POWER INPUT: 120 VAC, 50/60 Hz
DIMMING CONTROL: 0-10V, TRIAC/ELV, DALI

[divider]

NEED SOMETHING CURATED?

Check out our designer product for streamlined, ready-to-order options: Focus Single Standard

Read more →

Focus Triple

$0.00

aaline’s FOCUS Series is designed for precision lighting, carved out of a single block of hardwood. Each fixture is enhanced with aaline’s proprietary anti-glare carved visors (UGR <16) and 90+ CRI LED chips, available in various editions to suit the look of any space.

[divider]

SERIES: Linear Embedded
MODEL: Focus
EDITION: Triple
LUMEN OUTPUT:
LO
4': 1800 lm | 13.1 W | 135 lm/W
6': 2700 lm | 19.6 W | 135 lm/W
ST
4': 2700 lm | 19.7 W | 135 lm/W
6': 4050 lm | 29.4 W | 135 lm/W
HI
4': 3600 lm | 26.2 W | 135 lm/W
6': 5400 lm | 39.3 W | 135 lm/W
POWER INPUT: 120 VAC, 50/60 Hz
DIMMING CONTROL: 0-10V, TRIAC/ELV, DALI

[divider]

NEED SOMETHING CURATED?

Check out our designer product for streamlined, ready-to-order options: Focus Single Standard

Read more →

Linear Embedded

$0.00

CONFIGURE YOUR FIXTURE ➔

LINEAR SERIES BROCHURE ➔

REQUEST A QUOTE ➔

aaline’s Linear Embedded (LW-EB) is the core and engine behind aaline’s high-performance lighting systems. All systems with LW-EB modules are powered by programmable lux/lumens drivers for the most accurate, consistent, and high-efficacy performance. The chip-on-board LED modules are integrated with our robust aluminum heatsink for long life expectancy and performance up to 1400 lm/ft.

SERIES: LW-EB
MODEL: 01
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PET Diffusion Film

Read more →

Linear Double Triple

$0.00

CONFIGURE YOUR FIXTURE ➔

LINEAR SERIES BROCHURE ➔

REQUEST A QUOTE ➔

aaline’s Linear Series is the core and base of most high-performance systems aaline offers. The Chip-on Board LED modules are integrated with our robust aluminum heatsink for long life expectancy and performance up to 1400 lm/ft. To guarantee a perfect and consistent output by our system, all systems with LW-EB modules are powered by programmable lux/lumens drivers for the most accurate and efficient performance.

SERIES: LW-EB
MODELS: 02 | 03
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser

Read more →

Linear Anti-Glare

$0.00

CONFIGURE YOUR FIXTURE ➔

LINEAR SERIES BROCHURE ➔

REQUEST A QUOTE ➔

aaline’s Linear Anti-Glare is designed to provide a smooth and balanced light distribution for a focused output. They bring luminosity and an unassuming, tactile elegance to complement contemporary architecture and interiors. aaline’s proprietary ‘carved-visor’ system relies on the structural hardwood core to sculpt the anti-glare cells with zero plastic, achieving a UGR Rating <16, in line with WELL Building Standards.

SERIES: LW-EB
MODEL: 01
UPGRADE: AG
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser

Read more →

Linear Island

$0.00

CONFIGURE YOUR FIXTURE ➔

LINEAR SERIES BROCHURE ➔

REQUEST A QUOTE ➔

aaline’s Island Light is made for flexible and residential spaces. This fixture features our dual-celled anti-glare solution achieving a UGR<16, complying with WELL Building standards.

SERIES: LW-EB
MODEL: 01 | 02
UPGRADE: IS
LUMEN OUTPUT:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser

Read more →

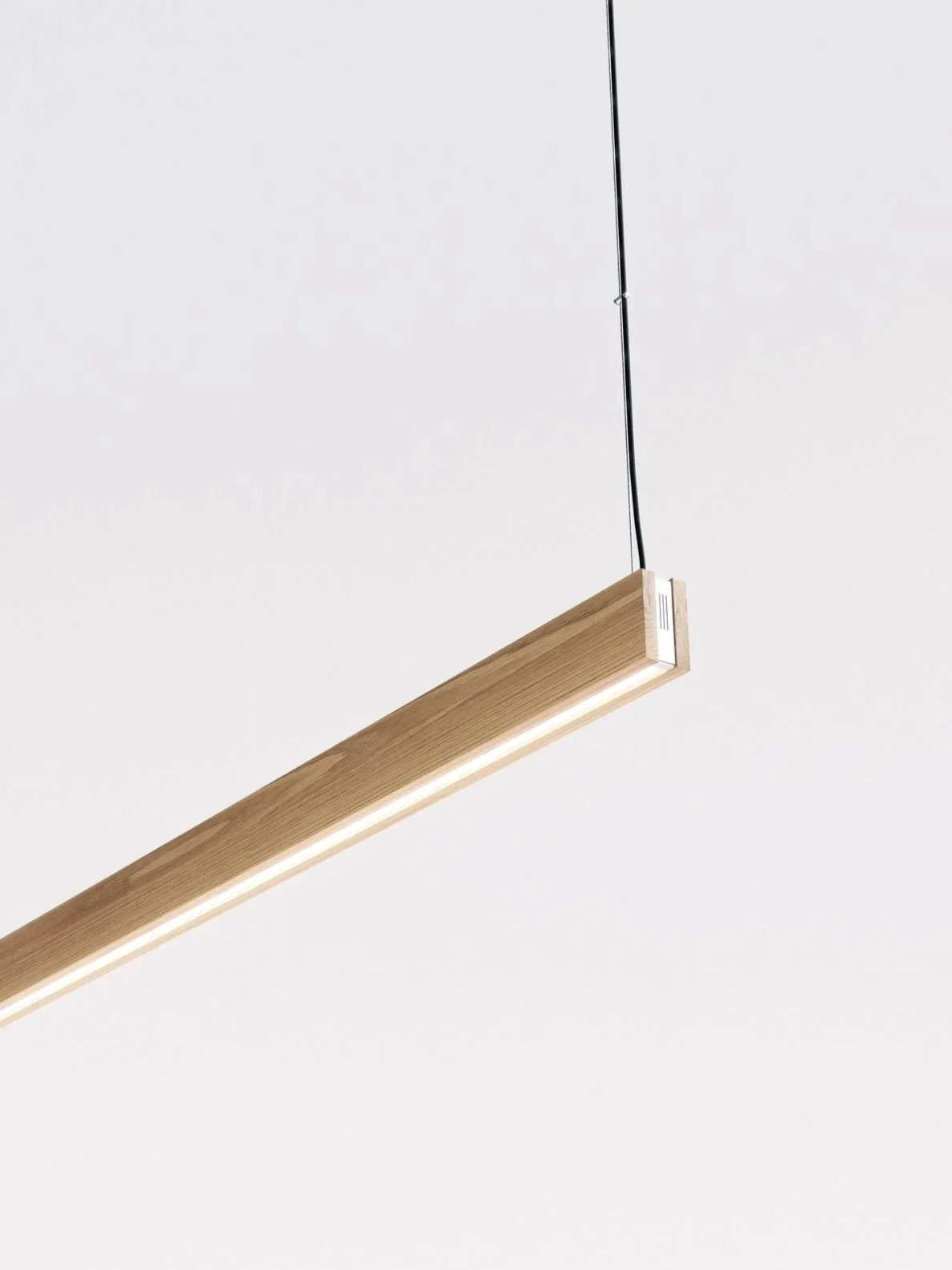

Linear Continuous

$0.00

FOURTH GENERATION

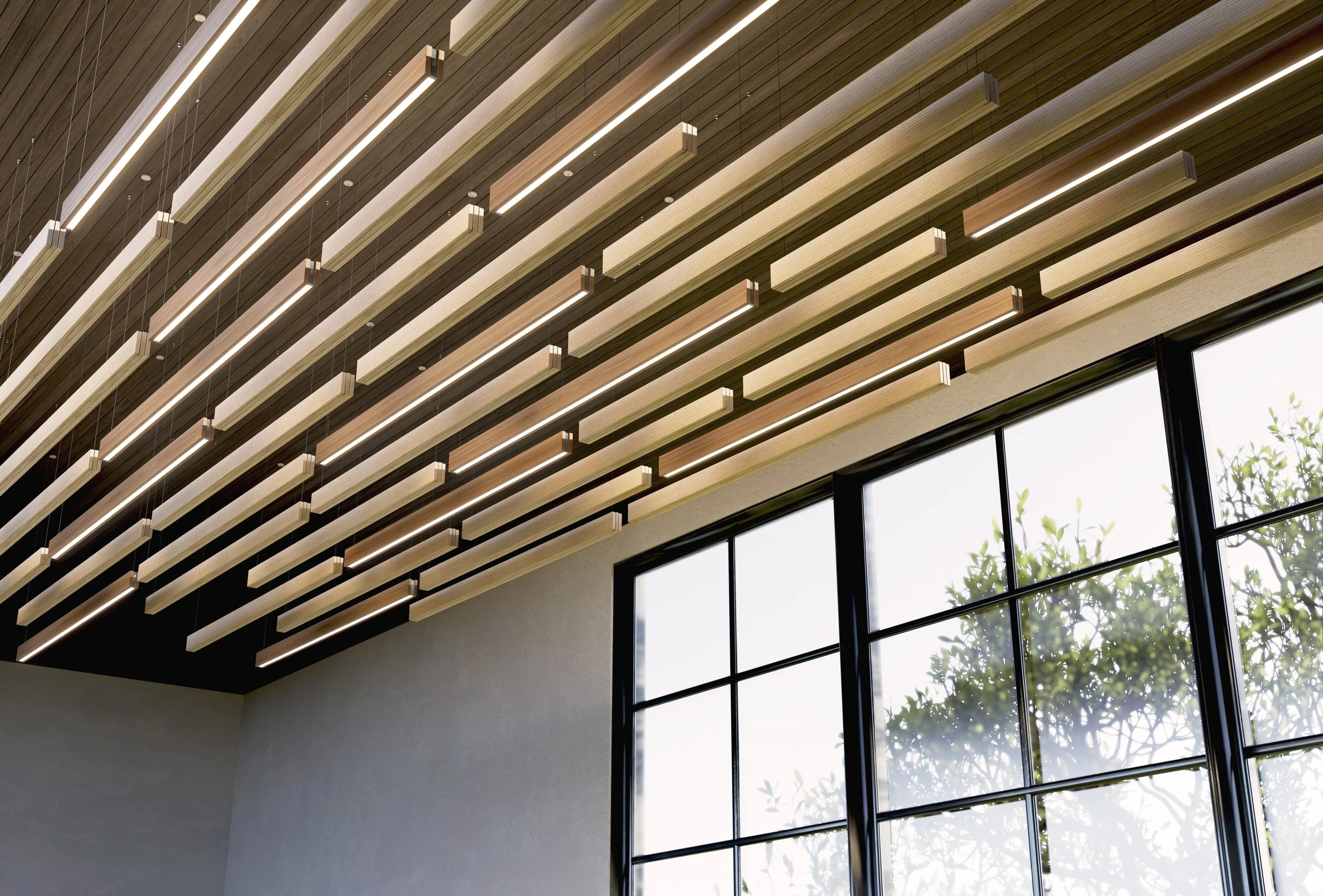

aaline’s Linear Continuous (LW-EB-LC) system is made for long runs of uninterrupted illumination through modular design. This system of virtually infinite coverage can be specified with various optic selection for both direct and indirect light distribution.

[divider]

LUMEN OUTPUT DIRECT:
LO: 650 lm/ft | 6.2 W/ft | 115.4 lm/W
ST: 1000 lm/ft | 9.5 W/ft | 110.2 lm/W
HI: 1514 lm/ft | 14.4 W/ft | 104.9 lm/W
LUMEN OUTPUT INDIRECT:
LO: 726.2 lm/ft | 6.2 W/ft | 128.9 lm/W
ST: 1117.2 lm/ft | 9.5 W/ft | 123.1 lm/W
HI: 1691.5 lm/ft | 14.4 W/ft | 117.2 lm/W
Based on 3500K, 90 CRI
+/- 5% based on optics and CCT
POWER INPUT: 110-277V AC, 50/60 Hz
DIRECT OPTICS: Lambertian, Oval, Wide, Extra Wide, Asymmetric
INDIRECT OPTICS: Lambertian, Batwing Wide, Batwing Extra Wide, Asymmetric

Read more →

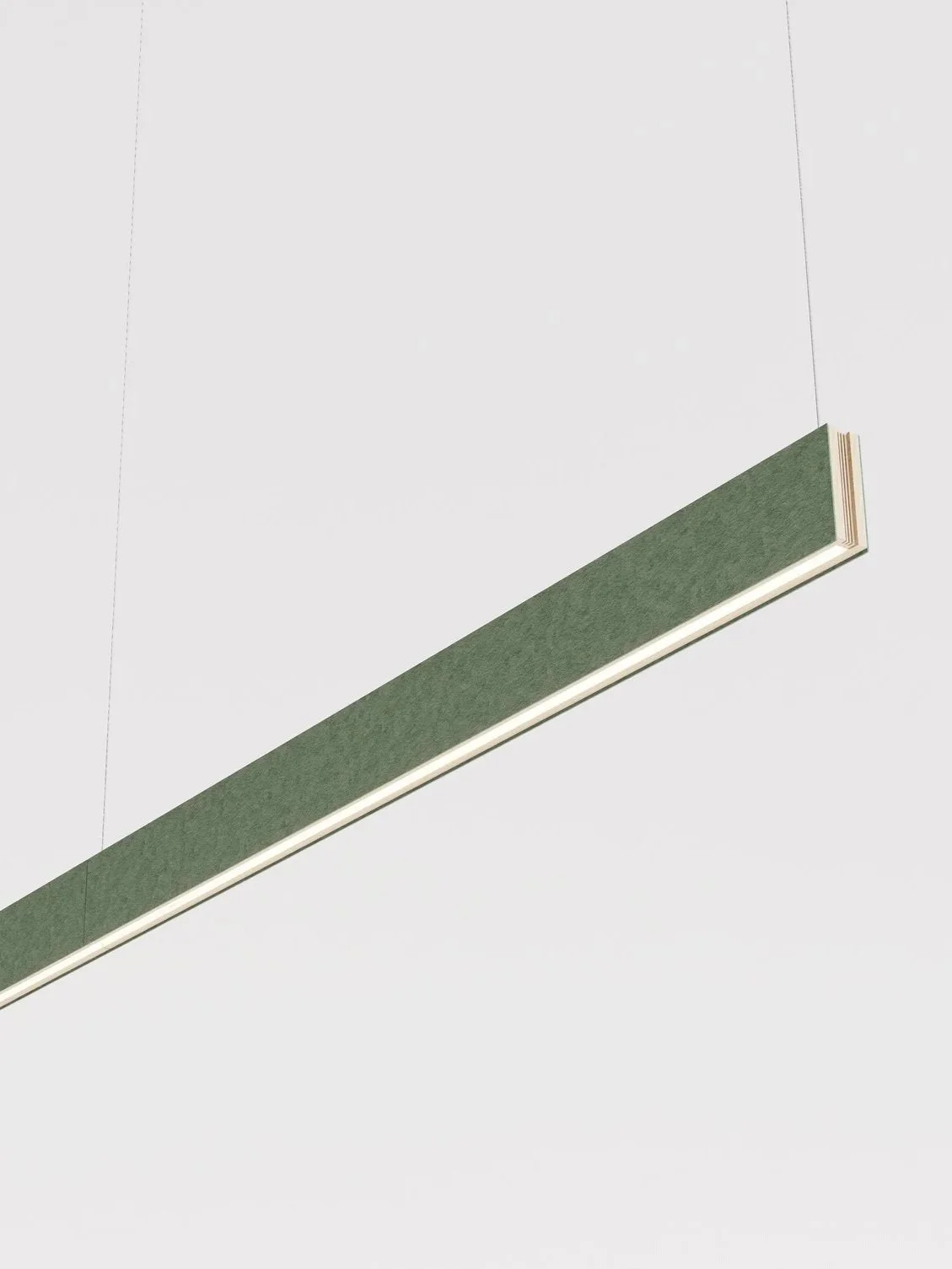

Linear Continuous Acoustic

$0.00

FOURTH GENERATION

aaline’s LW-EB-LC-AC series is our solution for larger projects that require seamless integration of lighting and acoustic performance in a cost-effective manner. The system is made with 100% natural felt, the first Zero-Plastic acoustic light with Class A fire rating.

[divider]

LUMEN OUTPUT DIRECT:
LO: 650 lm/ft | 6.2 W/ft | 115.4 lm/W
ST: 1000 lm/ft | 9.5 W/ft | 110.2 lm/W
HI: 1514 lm/ft | 14.4 W/ft | 104.9 lm/W
LUMEN OUTPUT INDIRECT:
LO: 726.2 lm/ft | 6.2 W/ft | 128.9 lm/W
ST: 1117.2 lm/ft | 9.5 W/ft | 123.1 lm/W
HI: 1691.5 lm/ft | 14.4 W/ft | 117.2 lm/W
Based on 3500K, 90 CRI
+/- 5% based on optics and CCT
POWER INPUT: 110-277V AC, 50/60 Hz
DIRECT OPTICS: Lambertian, Oval, Wide, Extra Wide, Asymmetric
INDIRECT OPTICS: Lambertian, Batwing Wide, Batwing Extra Wide, Asymmetric

Read more →

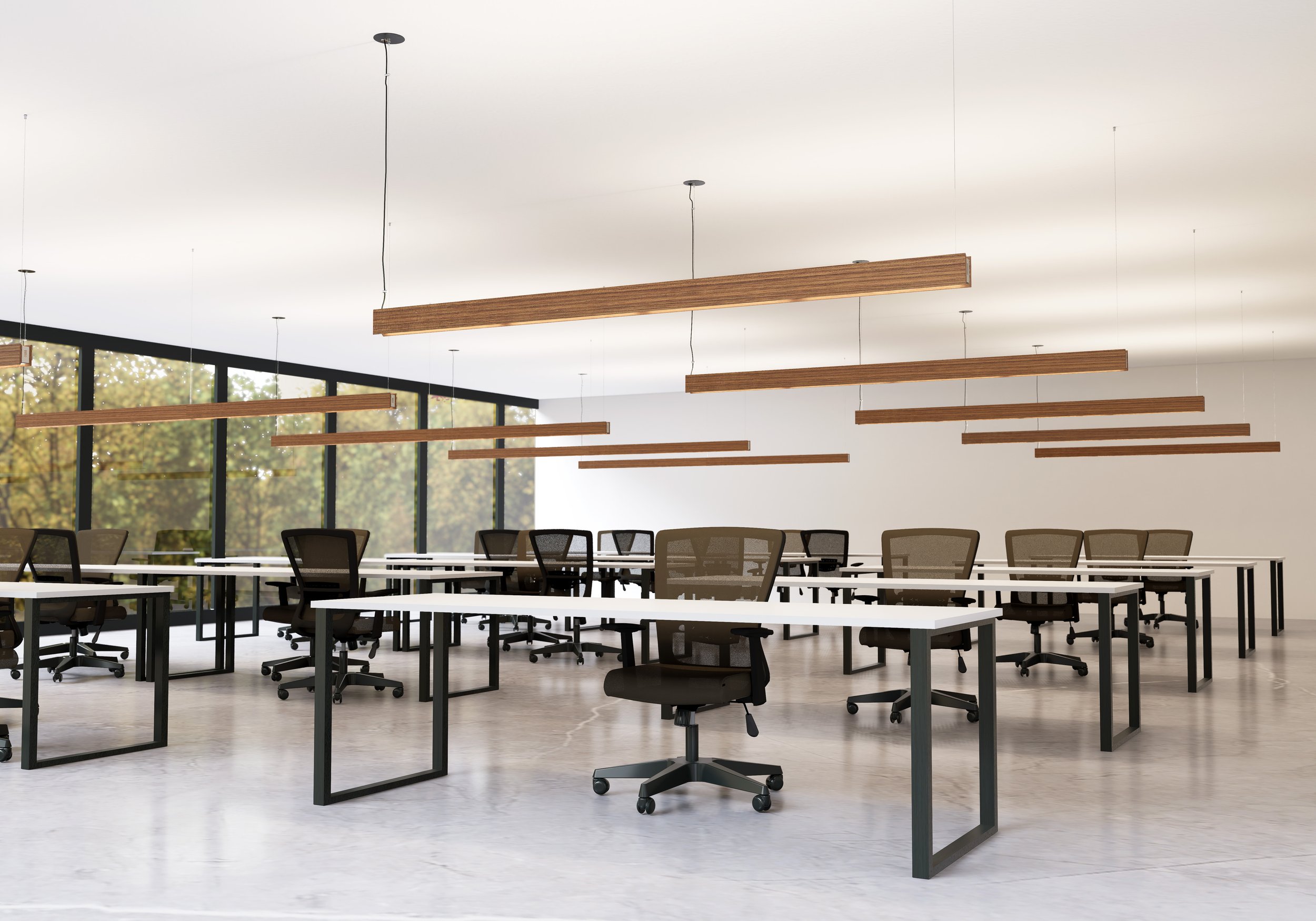

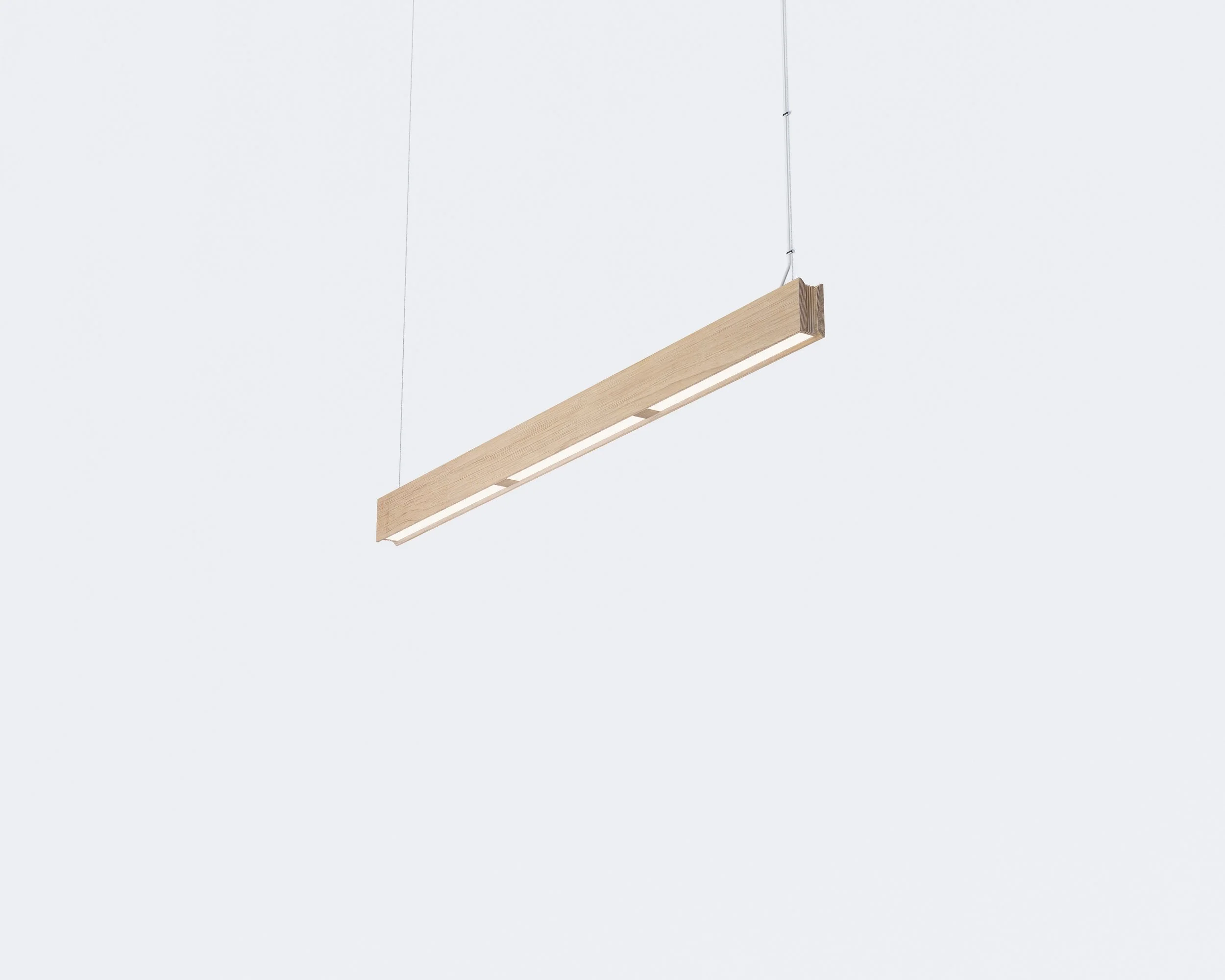

Linear Continuous High-Efficacy

$0.00

aaline’s Linear Continuous High-Efficacy (LW-EB-LC-HE) system boasts the same successes of the Linear Continuous, long runs of uninterrupted illumination through modular design, with an increased efficacy due to its wider aperture. This system of virtually infinite coverage can be specified with various optic selection for both direct and indirect light distribution.

[divider]

LUMEN OUTPUT DIRECT:
LO: 716.8 lm/ft | 5.9 W/ft | 120.7 lm/W
ST: 1102.8 lm/ft | 9.5 W/ft | 115.7 lm/W
HI: 1604.6 lm/ft | 14.8 W/ft | 108.7 lm/W
LUMEN OUTPUT INDIRECT:
LO: 722.5 lm/ft | 5.9 W/ft | 121.6 lm/W
ST: 1111.6 lm/ft | 9.5 W/ft | 116.6 lm/W
HI: 1617.3 lm/ft | 14.8 W/ft | 109.6 lm/W
Based on 3500K, 90 CRI
+/- 5% based on optics and CCT
POWER INPUT: 110-277V AC, 50/60 Hz
DIRECT OPTICS: Wide, Extra Wide, Oval, Asymmetric
INDIRECT OPTICS: Lambertian, Batwing Wide, Batwing Extra Wide, Asymmetric

Read more →

Acoustic Baffles

$0.00

CONFIGURE YOUR FIXTURE ➔

REQUEST A QUOTE ➔

aaline's Acoustic Baffles are designed with the idea of warmth, comfort and tactility. The system is available in multiple depths for better tuning of interiors. The system is made with 100% natural felt, backed with sound-absorbent fibre boards. It is one of the best-performing acoustic solutions and has a Class A fire-rating.

SERIES: AP
MODEL: AB
NRC RATING: Up to 1.0

Read more →

Conference Room Systems

The perfect balance of lighting and acoustics to adjust the space where comfort and customization matter. aaline’s ceiling systems are a turnkey solution for tuning the perfect meeting room.

CRS BROCHURE ➔

Systems

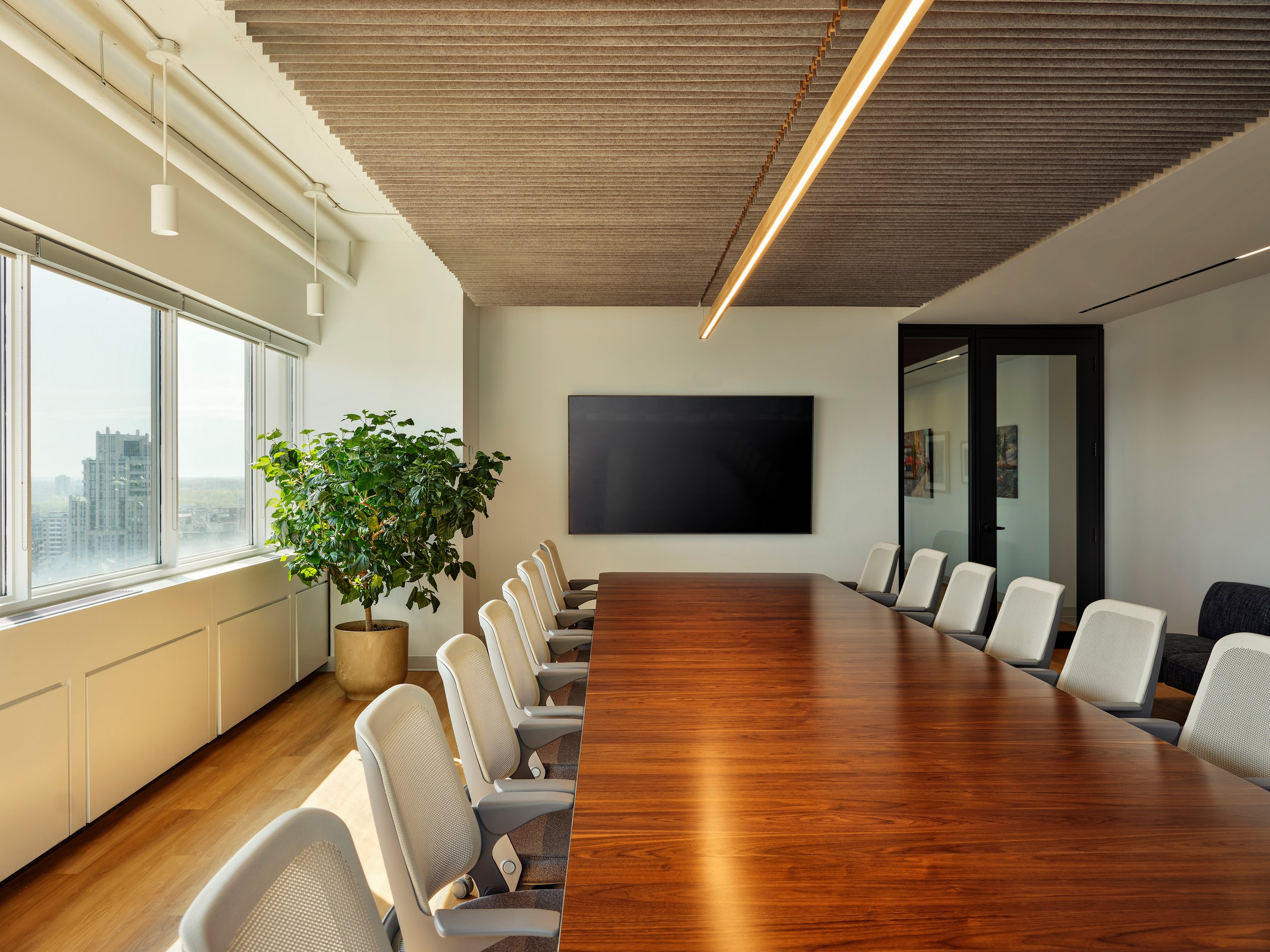

CRS Linear

$0.00

CONFIGURE YOUR CRS ➔

CRS BROCHURE ➔

REQUEST A QUOTE ➔

aaline’s Conference Room Systems are a stream-lined toolkit for tuning the perfect meeting room. The CRS-LN is a modification of our AP-PA and LW-EB-LC, with careful design considerations to combine these products for a minimal look and seamless installation. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.

The LW-EB-CRS-LC system is made for long runs of uninterrupted illumination through modular design. This system of virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures including dynamic whites.

SERIES: CRS
MODEL: LN
NRC RATING: Up to 1.0
LUMEN OUTPUT:
650 lm/ft | 6.2 W/ft | 105 lm/W
1000 lm/ft | 9.5 W/ft | 105 lm/W
1514 lm/ft | 14.4 W/ft | 105 lm/W
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PET film diffuser

Read more →

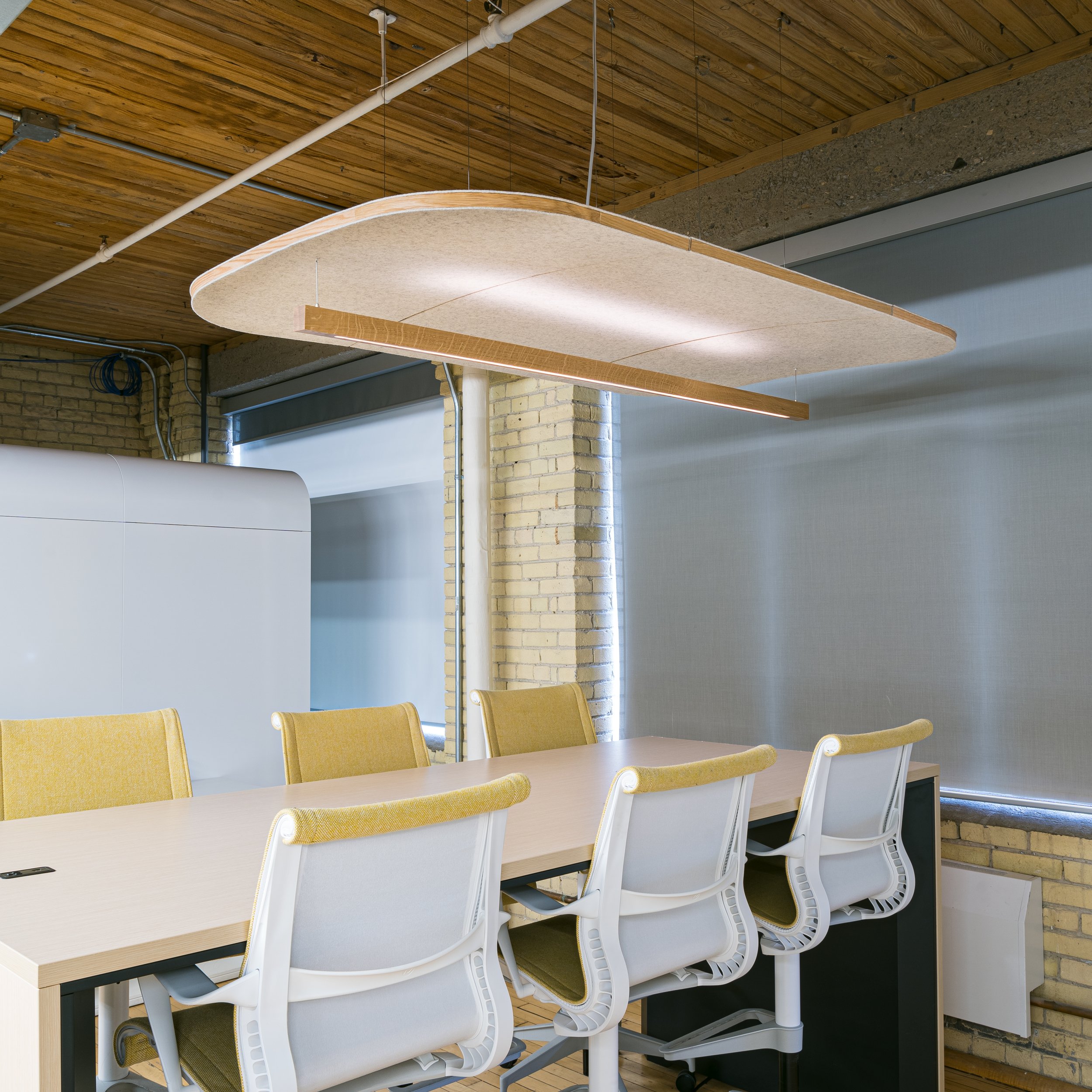

CRS Acoustic Wing

$0.00

CONFIGURE YOUR CRS ➔

CRS BROCHURE ➔

REQUEST A QUOTE ➔

The CRS-AW combines acoustic modules with aaline’s LW-EB-LC model. Acoustic modules are backed with sound-absorbent fibre boards and 100% natural felt. The LW-EB-CRS-LC integrates into the acoustics with careful design considerations and power-over-cable suspension for a minimal, seamless installation. This lighting system is made for long runs of illumination through modular design. This virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures including dynamic whites.

SERIES: CRS
MODEL: AW
NRC RATING: Up to 1.0
LUMEN OUTPUT:
650 lm/ft | 6.2 W/ft | 105 lm/W
1000 lm/ft | 9.5 W/ft | 105 lm/W
1514 lm/ft | 14.4 W/ft | 105 lm/W
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PET film diffuser

Read more →

CRS Echo

$0.00

CONFIGURE YOUR CRS ➔

CRS BROCHURE ➔

REQUEST A QUOTE ➔

Consistent with the rest of the Echo Collection, this system is inspired by harmonic serialism and soft minimalism. The CRS Echo is designed to create a warm and welcoming auditory experience with control of specific acoustic and lighting parameters. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.

The CRS Echo is equipped with an integrated modification of aaline’s LW-EB, with a minimal profile and rounded edges. The LW-EB utilizes 90 CRI LED chips with a range of CCT available in 1 or 2 channel control.

SERIES: CRS
MODEL: EC
NRC RATING: Up to 1.0
LUMEN OUTPUT + CONSUMPTION:
900 lm/ft | 8.6 W/ft | 105 lm/W
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser

Read more →

CRS Flat

$0.00

CONFIGURE YOUR CRS ➔

CRS BROCHURE ➔

REQUEST A QUOTE ➔

The CRS Flat redefines the aesthetic look of Conference Room Systems with its elegant profile. Its modular design offers virtually infinite length possibilities blending materiality, colours, and geometric elements.

The CRS-FL combines acoustic modules with aaline’s Linear Continuous (LW-EB-LC). Acoustic modules are upholstered with Maharam textiles or 100% natural acoustic felt and backed with sound-absorbent fibres to achieve impressive Noise Reduction Coefficient (NRC) ratings. Lighting fixtures are thoughtfully designed to be integrated into the system for seamless installation.

SERIES: CRS
MODEL: FL
NRC RATING: Up to 1.0
LUMEN OUTPUT:
650 lm/ft | 6.2 W/ft | 105 lm/W
1000 lm/ft | 9.5 W/ft | 105 lm/W
1514 lm/ft | 14.4 W/ft | 105 lm/W
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PET film diffuser

Read more →

Linear Slats

$0.00

CONFIGURE YOUR FIXTURE ➔

REQUEST A QUOTE ➔

aaline’s Linear Slats acoustic panels are designed with the idea of warmth, comfort and tactility. They also pair perfectly with our Wall Mount Out-Facing lights [LW-EB-WM-OF] which have a consistent aesthetic but come with integrated, specification-grade LED engine. This collection is available in multiple depths for better tuning of interiors.

The system can be detailed with zero-plastic, 100% natural acoustic felt and backed with sound-absorbent fibre boards. It is one of the best performing acoustic solutions in its category.

SERIES: AP
MODEL: LS
NRC RATING: Up to 0.6

Read more →

Acoustic Panels | Pre-Assembled

$0.00

CONFIGURE YOUR FIXTURE ➔

REQUEST A QUOTE ➔

aaline'spre-assembled small and large module panels allow for custom STC and NRC ratings required for your project. The integrated panelling system allows for the highest-performing mineral fibre products (Sheetrock) & natural-fibre sheet products (SonoPan) to be embedded as part of your wall finish with integrated lighting modules in both ceiling and wall application.

aaline acoustics are made from selectively harvested Canadian hardwood and FSC-certified lumber detailed with 100% natural wool felt. With an endless possibility of unique combinations, aaline acoustics opens up endless personalized configurations with scalable adaptability.

SERIES: AP
MODEL: PA
NRC RATING: Up to 1.0

Read more →

Plane Zigzag

$0.00

CONFIGURE YOUR FIXTURE➔

REQUEST A QUOTE ➔

aaline’s Plane is a hybrid between an acoustic baffle and light. Versatile by nature, the simple shape encourages the use of cluster-based compositions. Available in 4 sizes to dynamically fill overhead space with endless configurations. Plane Zigzag incorporates long runs of our Plane module set at certain degree angles. Baffles lined with Maharam fabrics provide a luxurious textural element that brings an interesting visual dialogue to any space.

Read more →

Design Made to Last

aaline methodology considers the impact of our product offering including sourcing materials locally and reducing our carbon footprint. Our systems prove a sustainable design approach can be made to last in aesthetic, materiality, and production methods.

SUSTAINABILITY ➔

Browse By Series

FOCUS SERIES

LINEAR SERIES

CONFERENCE ROOM SYSTEMS

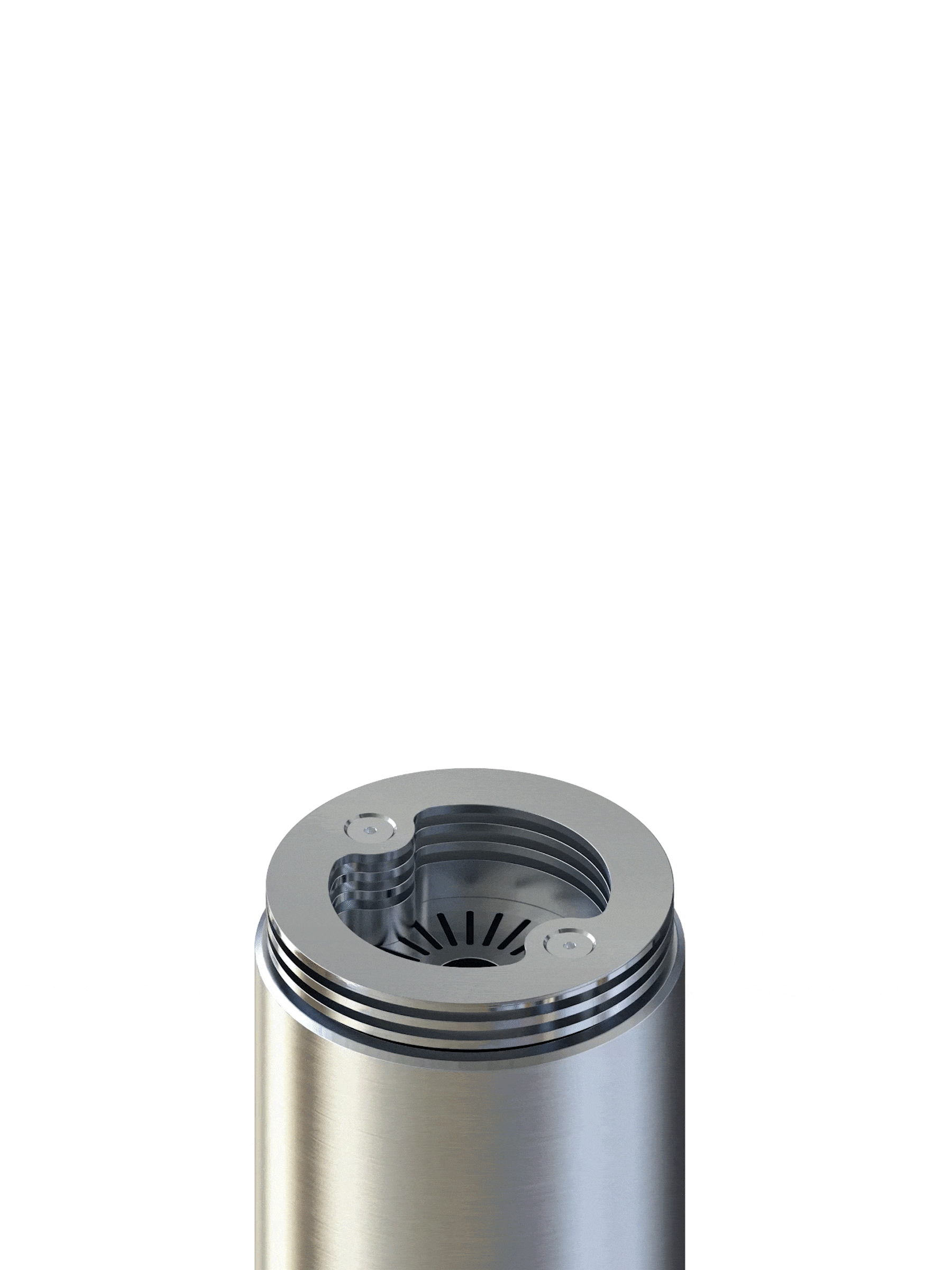

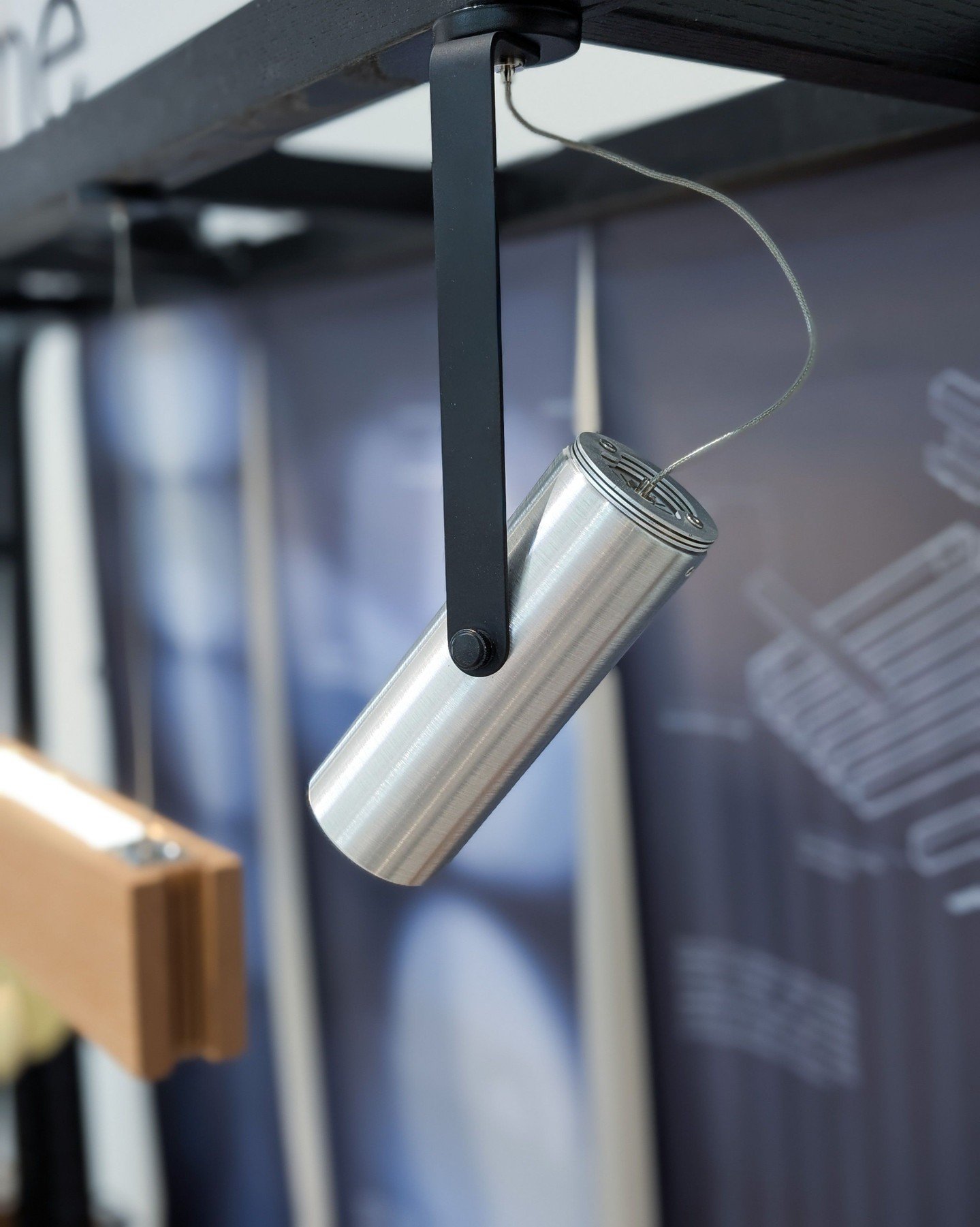

CYLINDER SERIES

Fixtures for Any Space

aaline lighting + acoustic fixtures are offered in various sizes, technical parameters, finishes, and mounting options, giving you the flexibility to design for any space.

CUSTOM SYSTEMS ➔

Reclamation Program: Right to Repair

Please contact us and we will arrange to get the system to our factory so we can refurbish it for you or re-use parts and components that can be reclaimed.
