Conference
Room Systems

DIGITAL BROCHURE

aaline Conference Room Systems are the perfect balance of lighting and acoustics to adjust the space where comfort and customization matter. aaline’s ceiling systems are a turnkey solution for tuning the perfect meeting room.

PRODUCTS

DIMENSIONS

TECHNICAL + MOUNTING

A Turnkey Solution

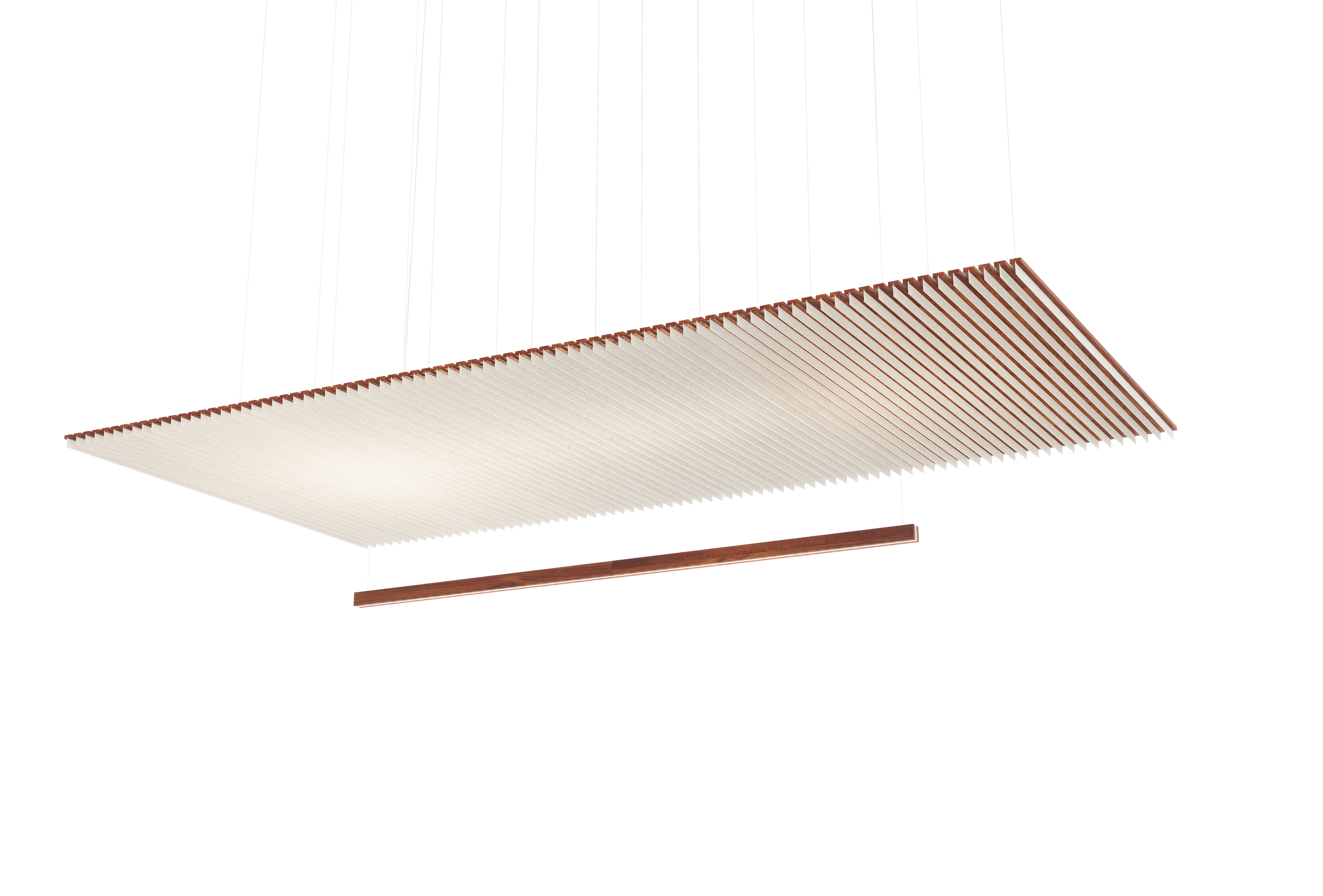

CRS LINEAR ➔

Modification of Acoustic Panels Pre-Assembled and Linear Continuous, specifiable by length x width.

Min 3’ - Infinite, visible seams up to every 8’
Power supply every 16’
Opal: 460 lm/ft
High-Efficacy: 736 lm/ft
Max 10 W/ft

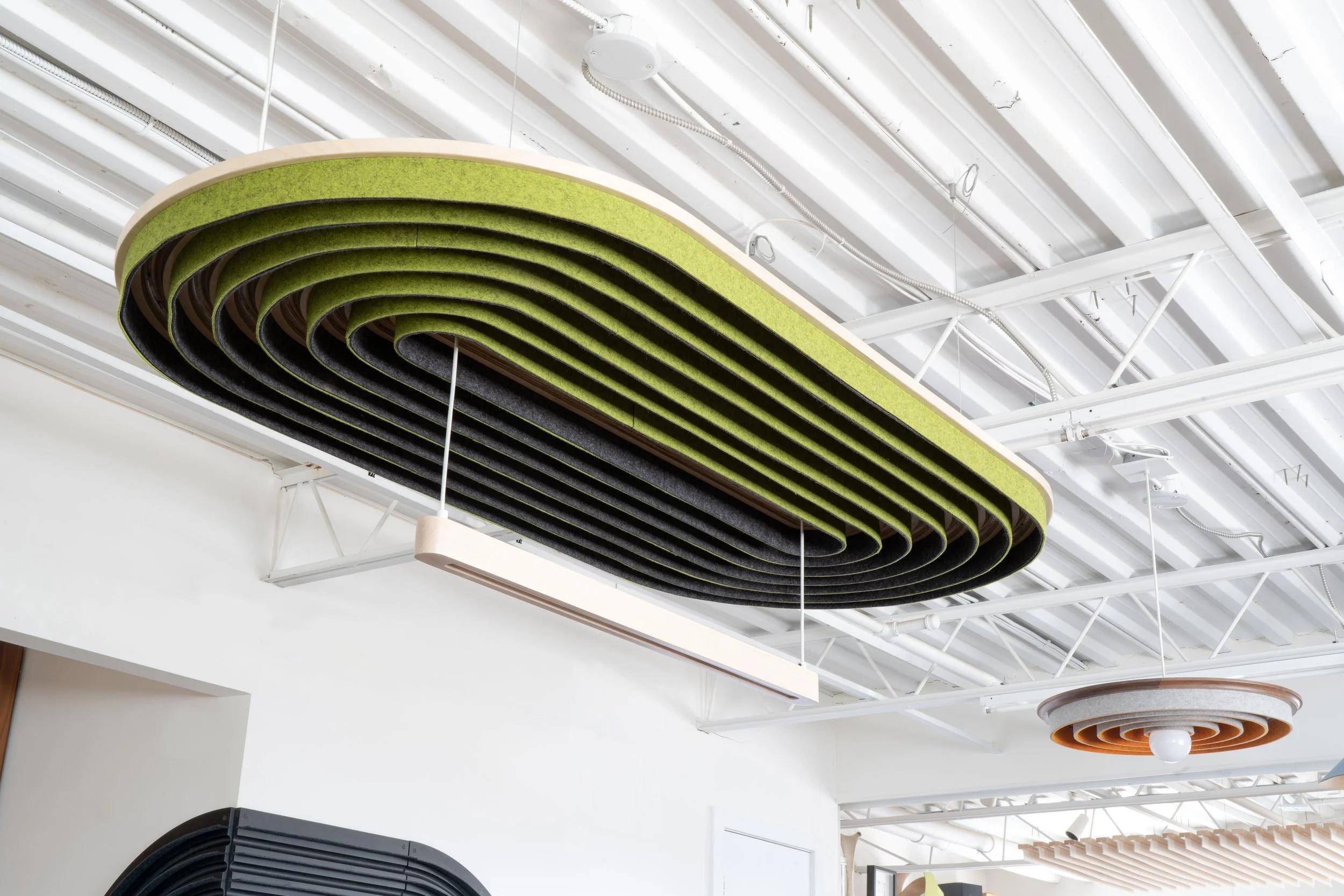

CRS ECHO ➔

Designed to create a warm and welcoming auditory experience, inspired by harmonic serialism and soft minimalism.

Min 1’ - Max 8’
250 lm/ft
Max 5 W/ft

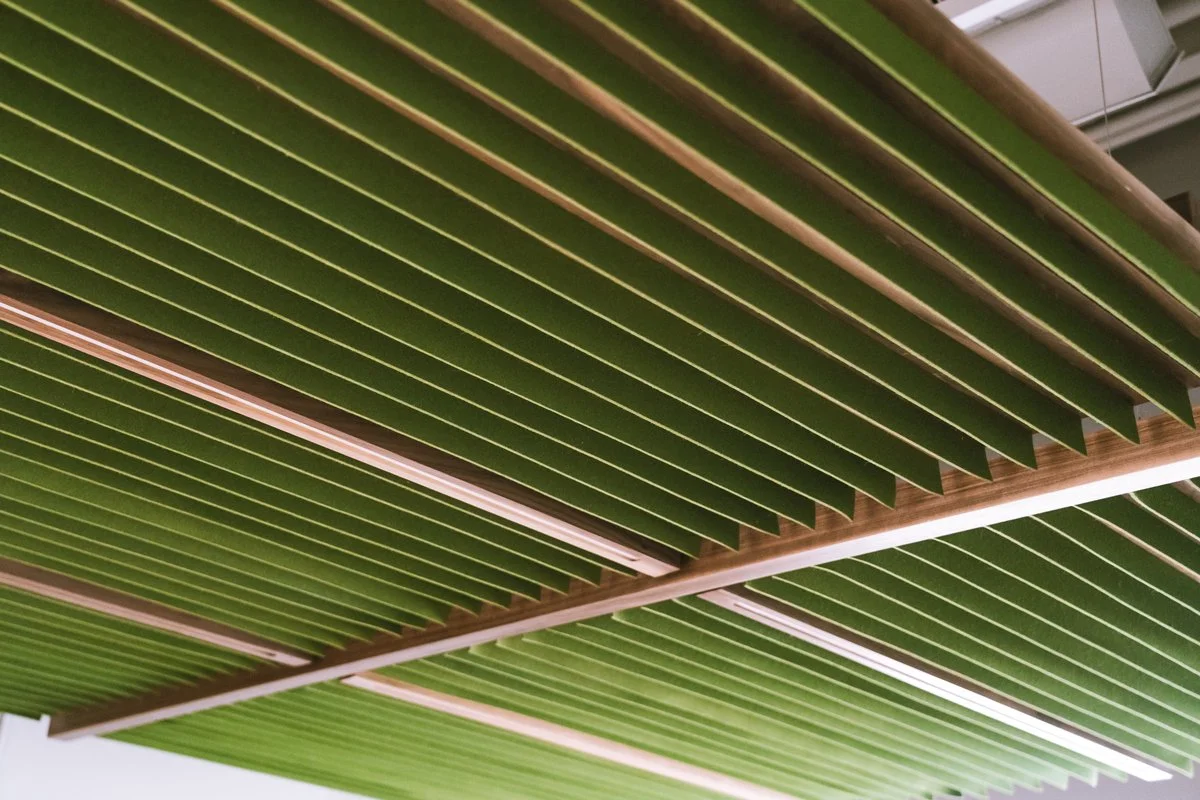

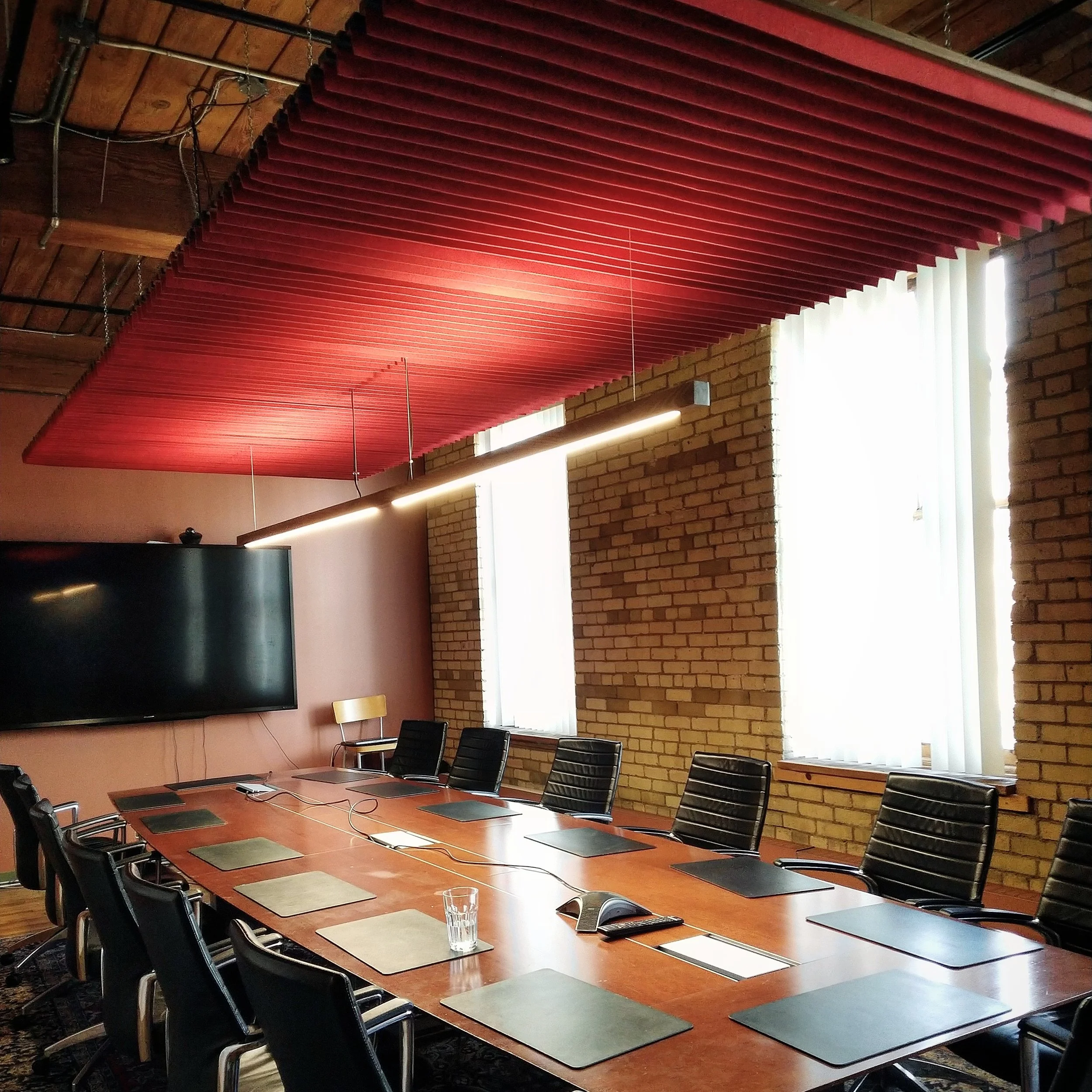

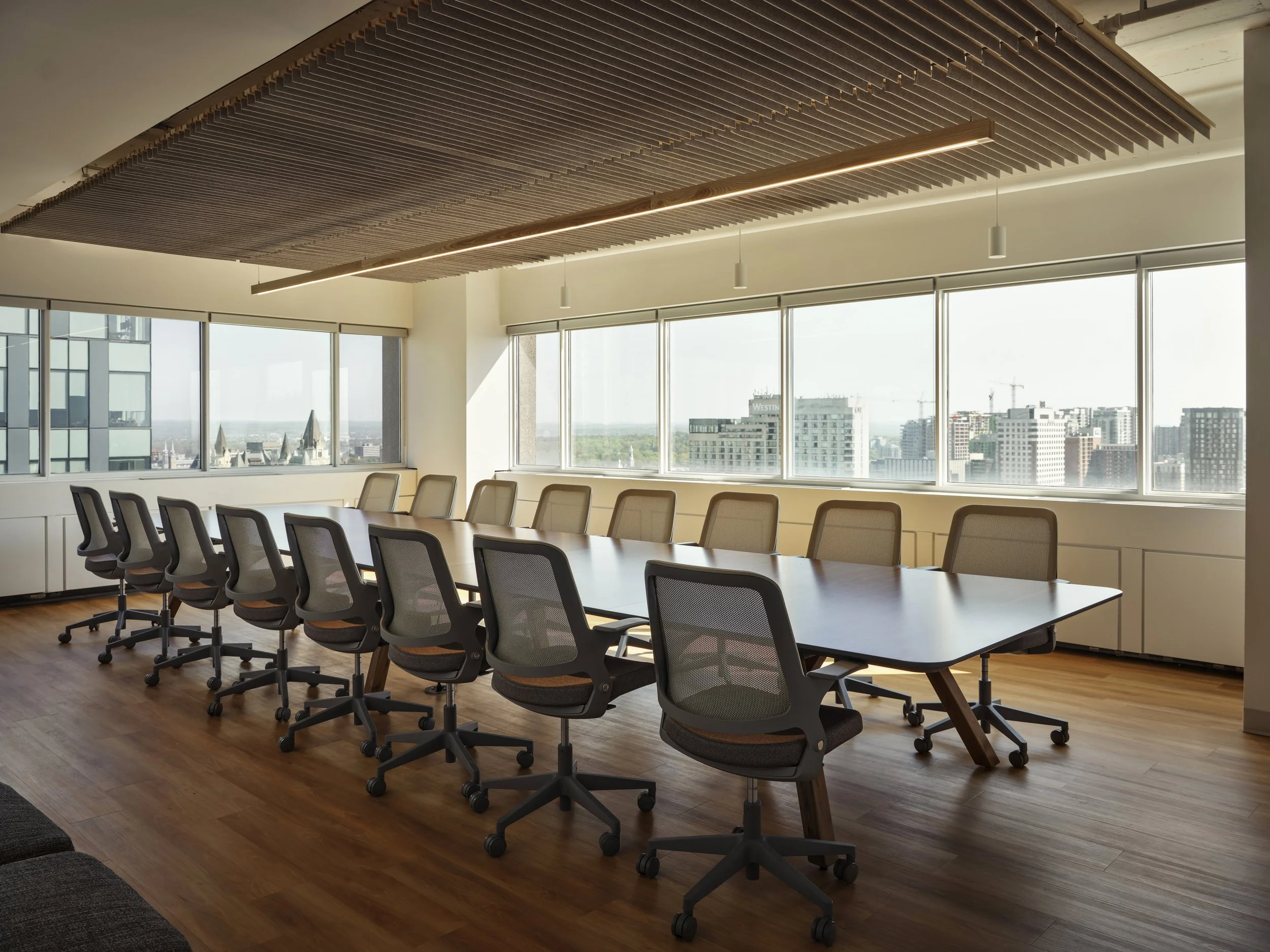

CRS Linear

ACOUSTIC BASE

CRS ACOUSTIC WING ➔

Subtle curvature and large acoustic panels create an elegant meeting room solution, available in set sizes.

Min 3’ - Infinite, visible seams up to every 8’
Power supply every 16’
Opal: 460 lm/ft
High-Efficacy: 736 lm/ft
Max 10 W/ft

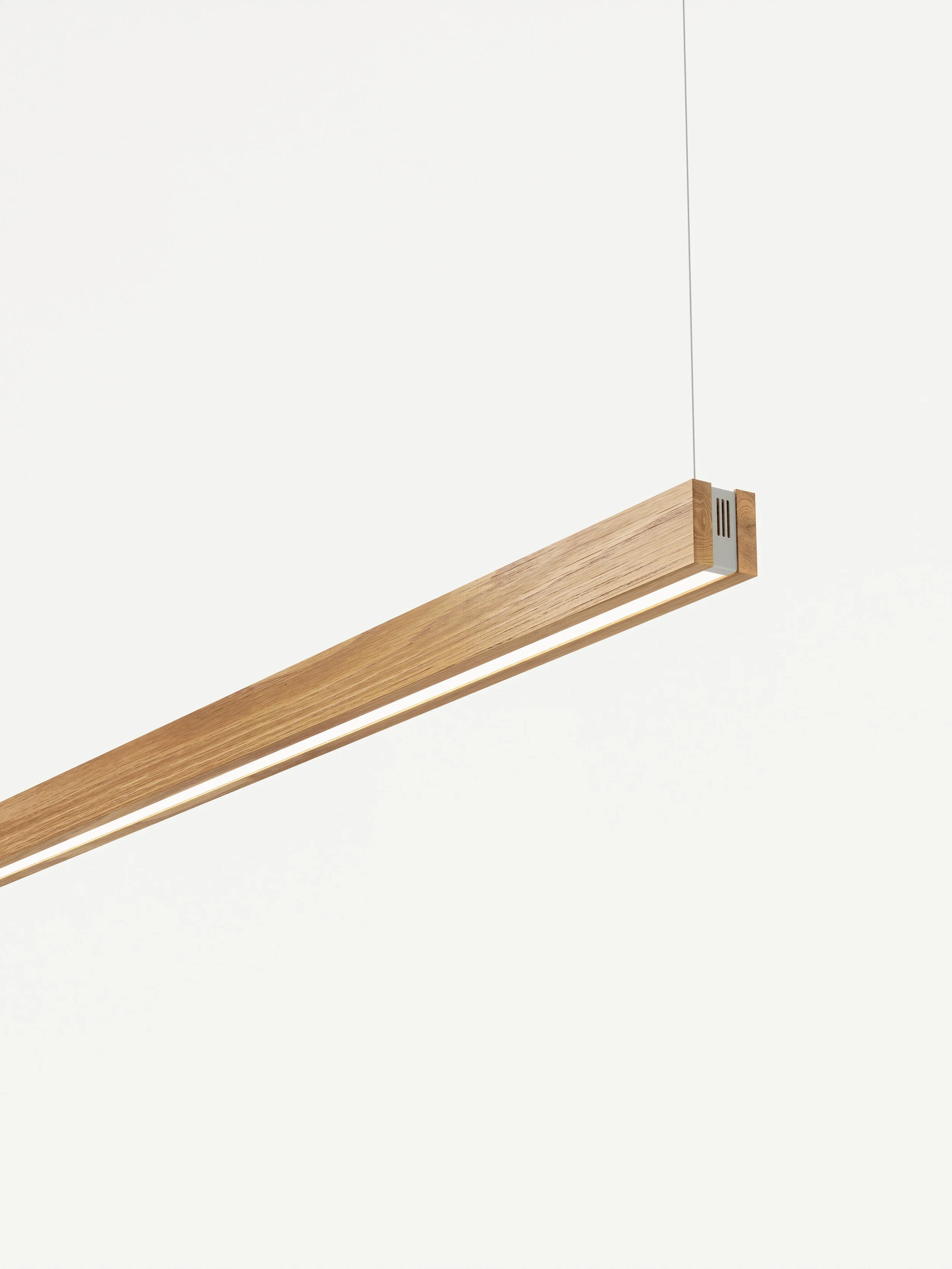

aaline’s standard CRS with linear orientations and minimal, geometric design. The CRS-LN is made for scale, a modification of our AP-PA and LW-EB-LC, with careful design considerations to combine these products for a minimal look and seamless installation.

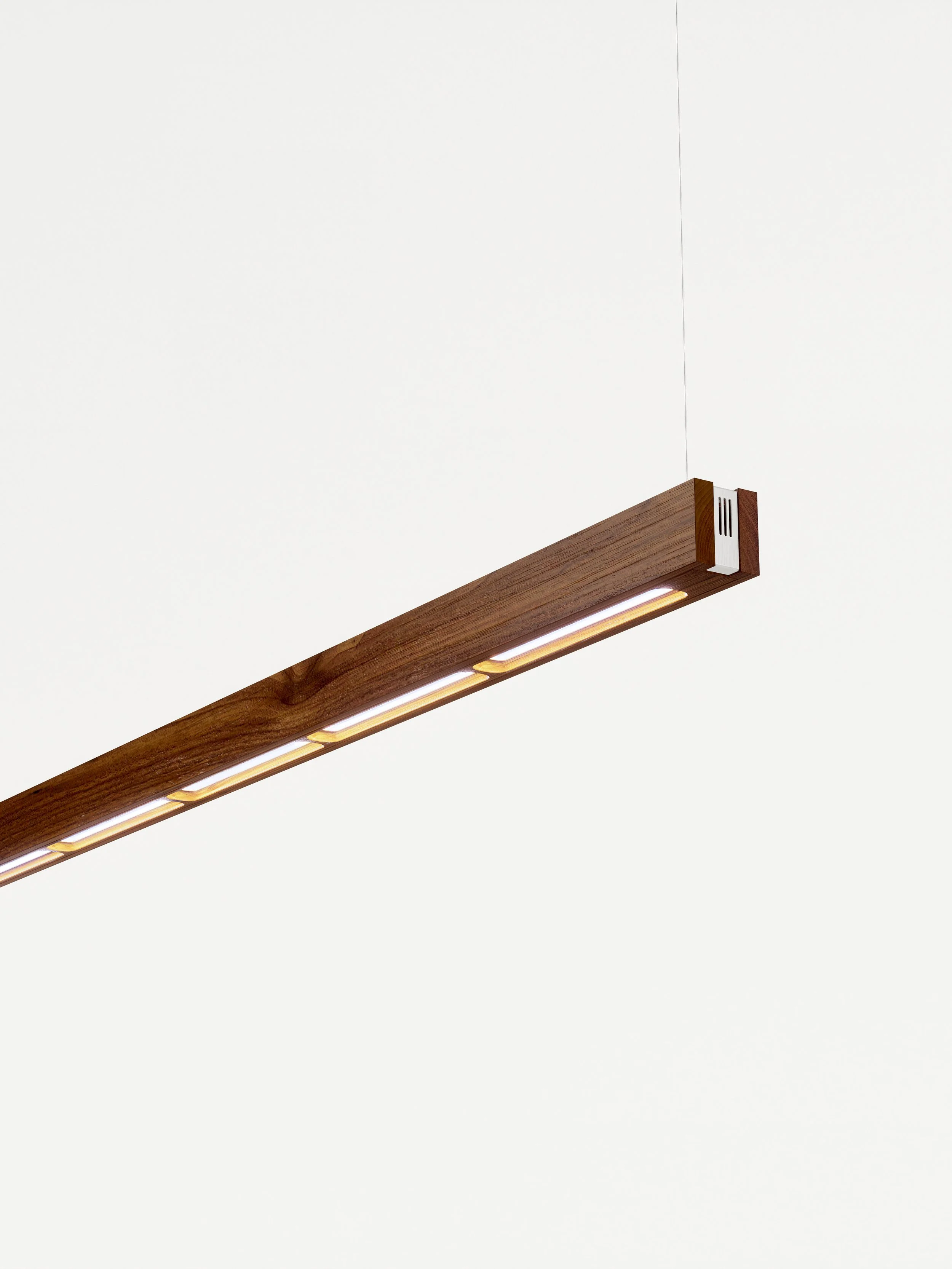

Linear Continuous Anti-Glare

Specifiable by length x width and wrapped in acoustic felt or Maharam textile fabric for appropriate acoustic control.

Min 3’ - Infinite, visible seams up to every 8’
Power supply every 16’
Opal: 460 lm/ft
High-Efficacy: 736 lm/ft
Max 10 W/ft

CRS flat ➔

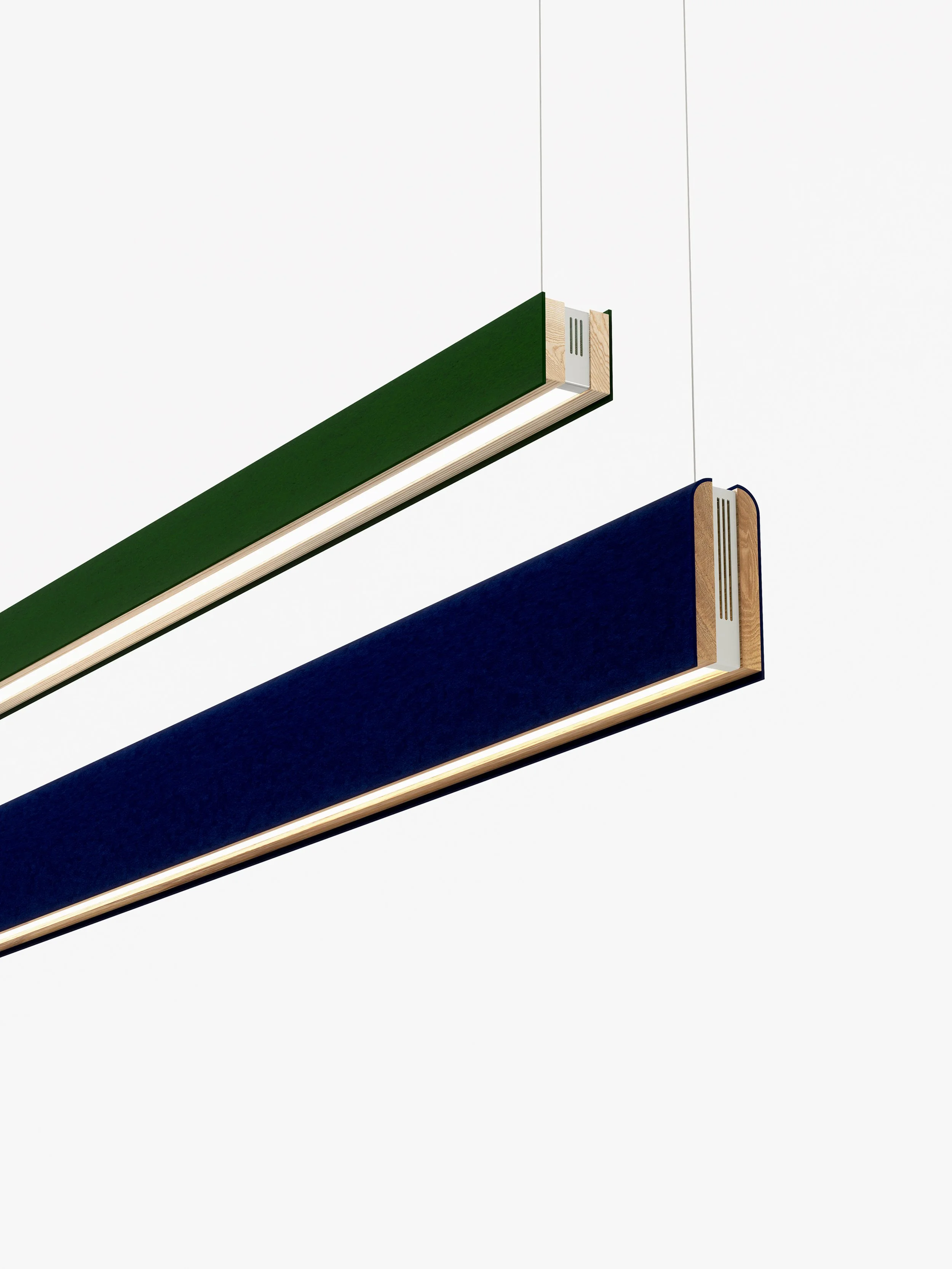

Linear Continuous Acoustic

MODEL UPGRADES

Linear Continuous

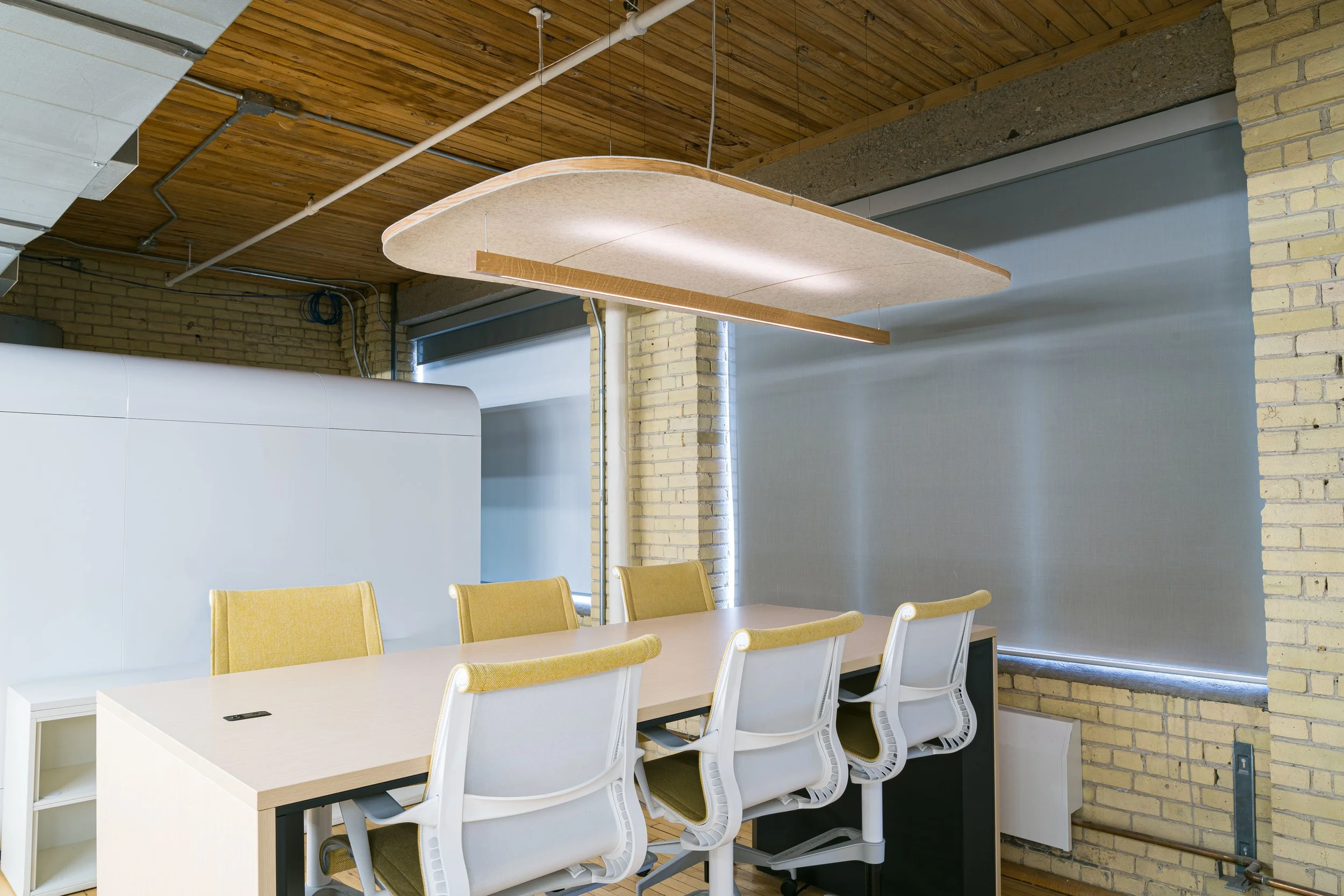

CRS Acoustic Wing

The Acoustic Wing (CRS-AW) introduces a new look to aaline’s Conference Room Systems with high-performing lighting & acoustics for today’s meeting rooms. This system is refined to create a warm and comfortable visual & auditory balance.

Linear Continuous Acoustic

LIGHT BASE

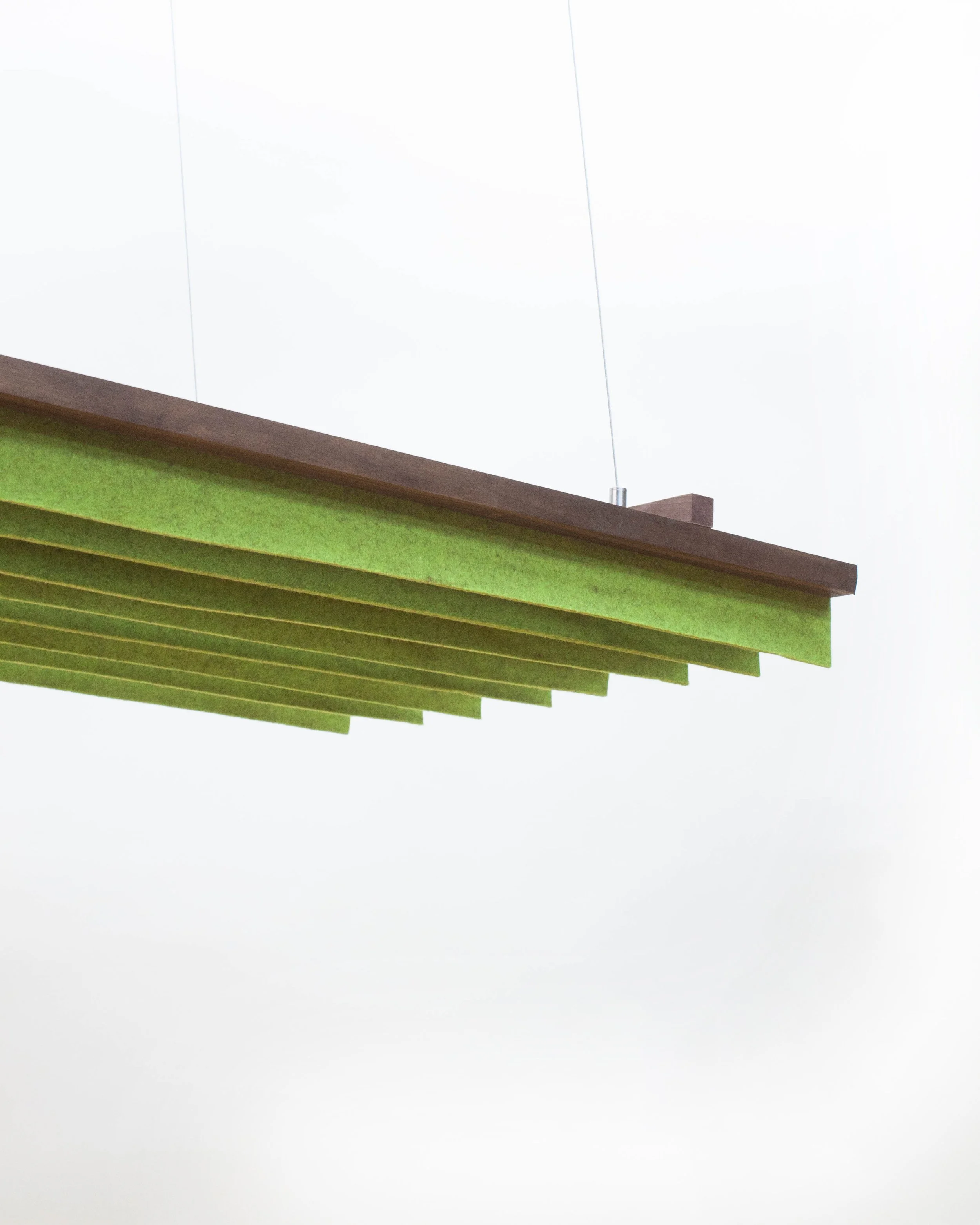

Acoustic Panels
Pre-Assembled

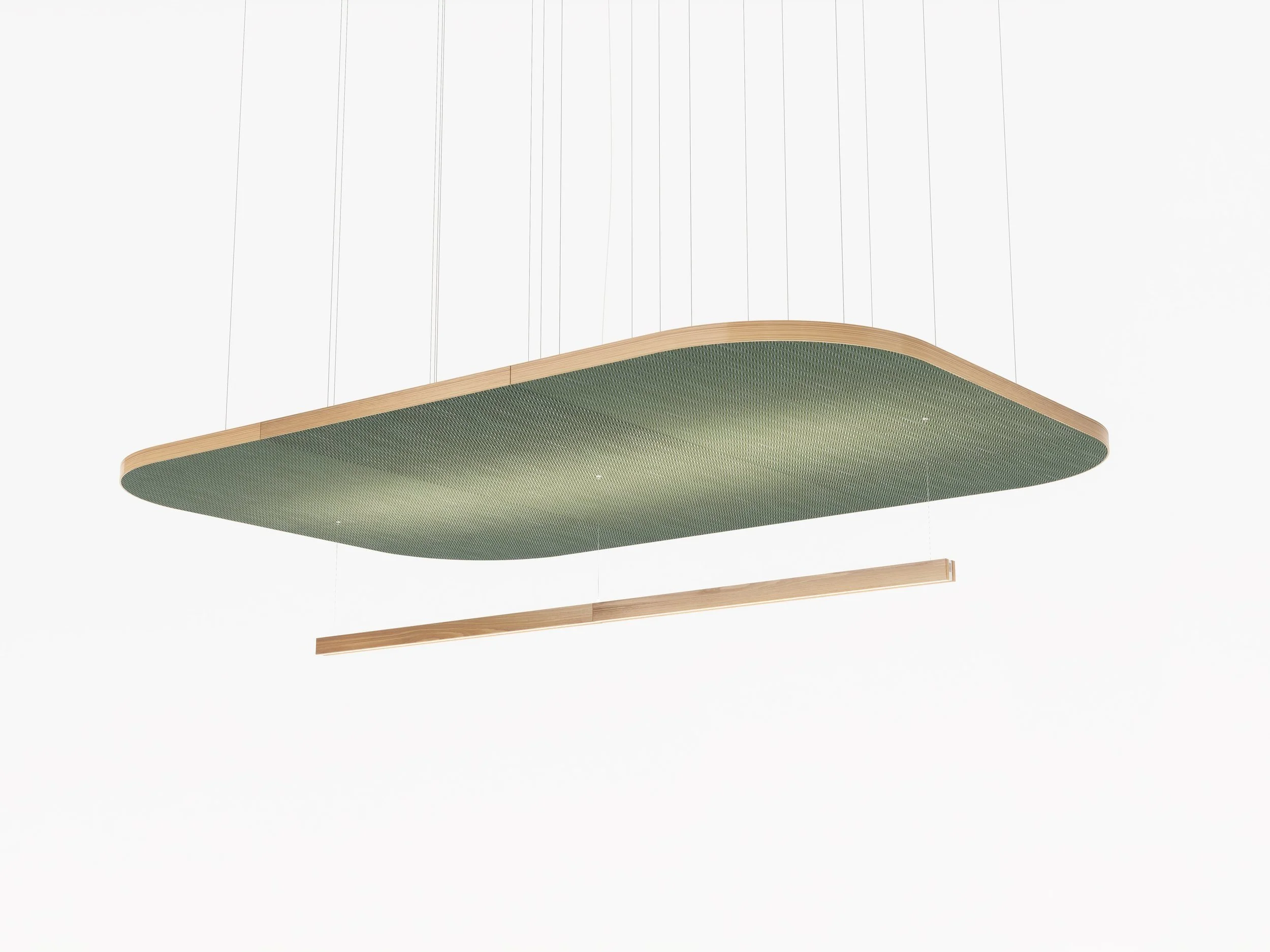

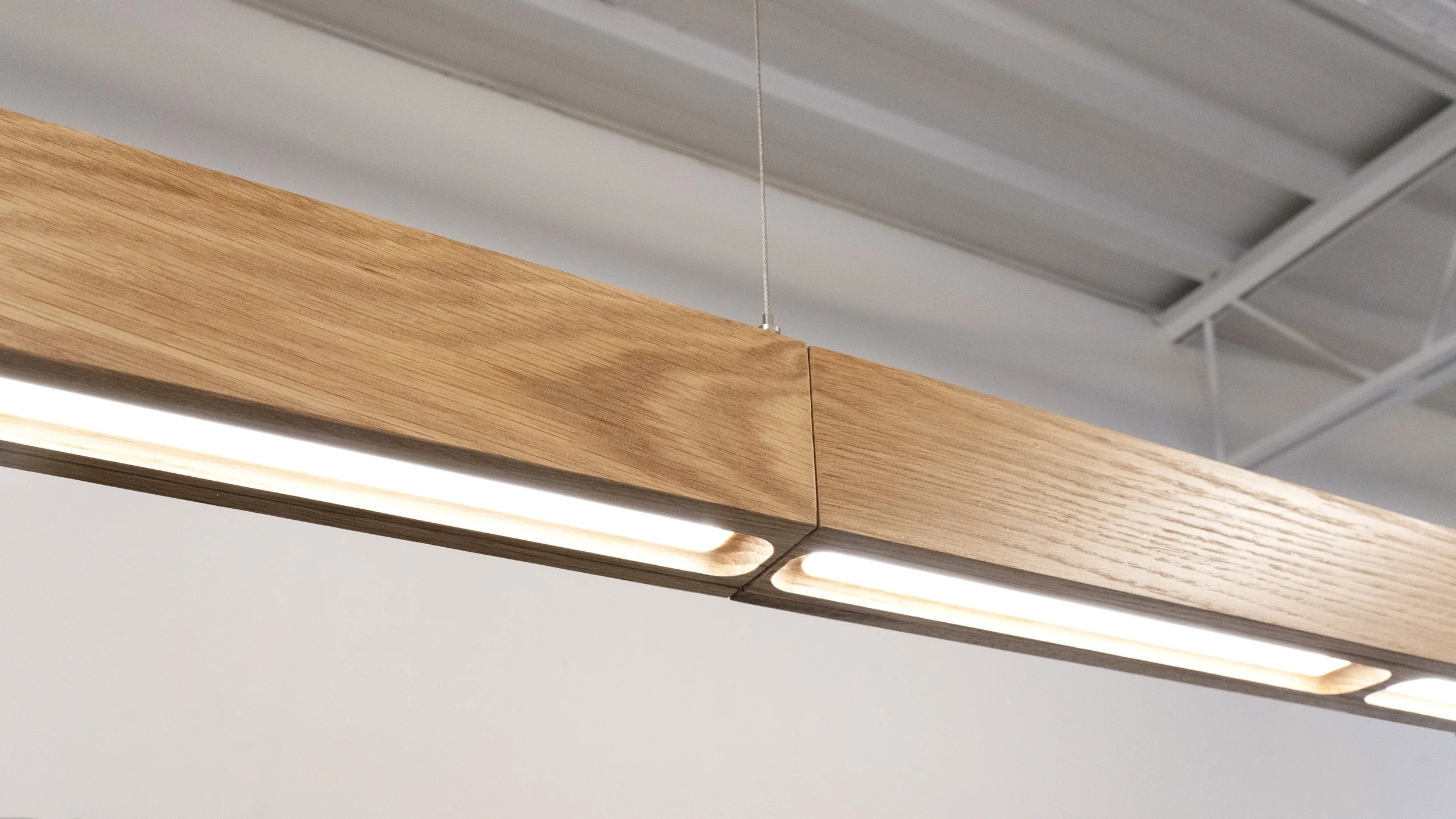

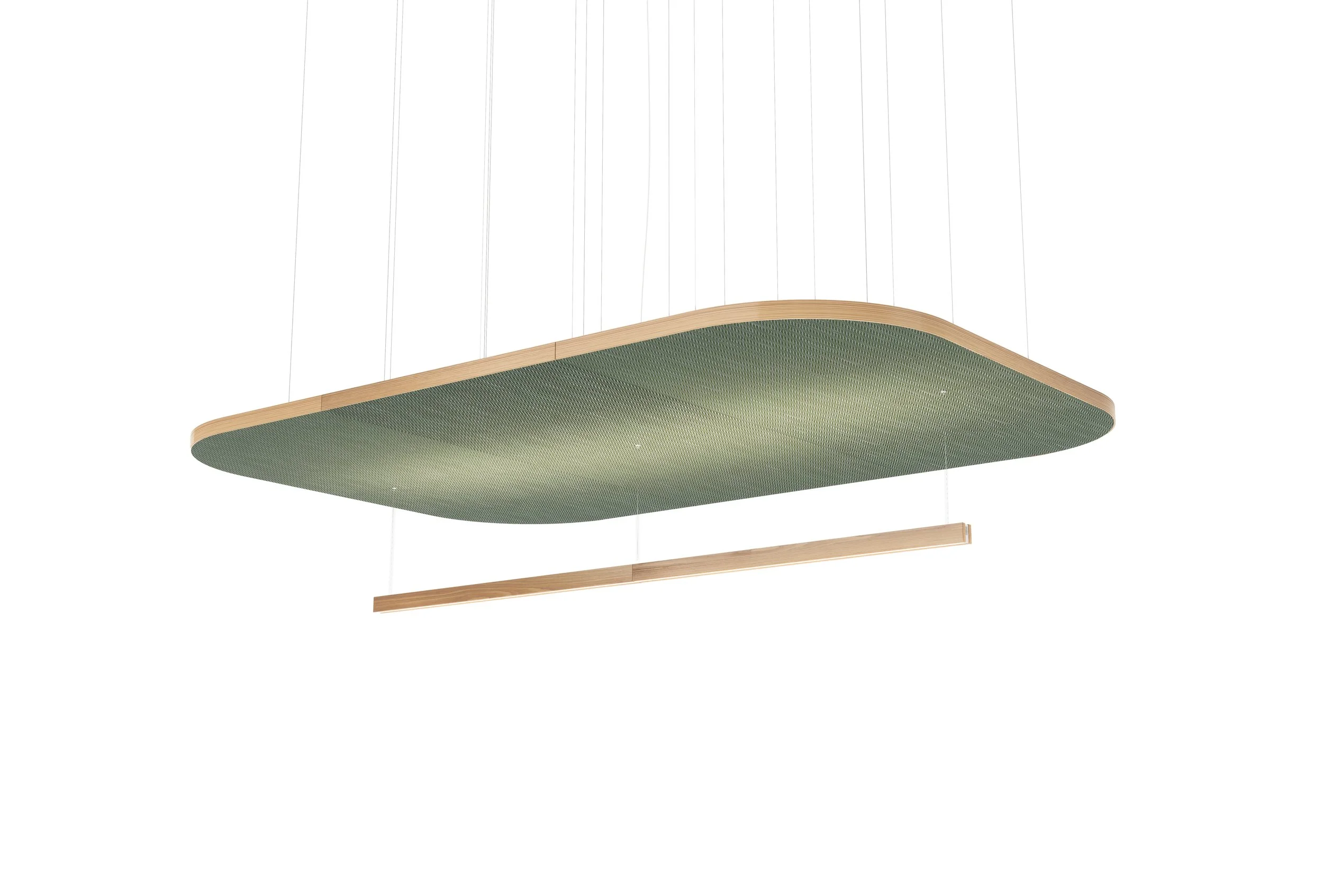

CRS Flat

The CRS Flat redefines the aesthetic look of Conference Room Systems with its elegant profile. Its modular design offers virtually infinite length possibilities blending materiality, colours, and geometric elements.

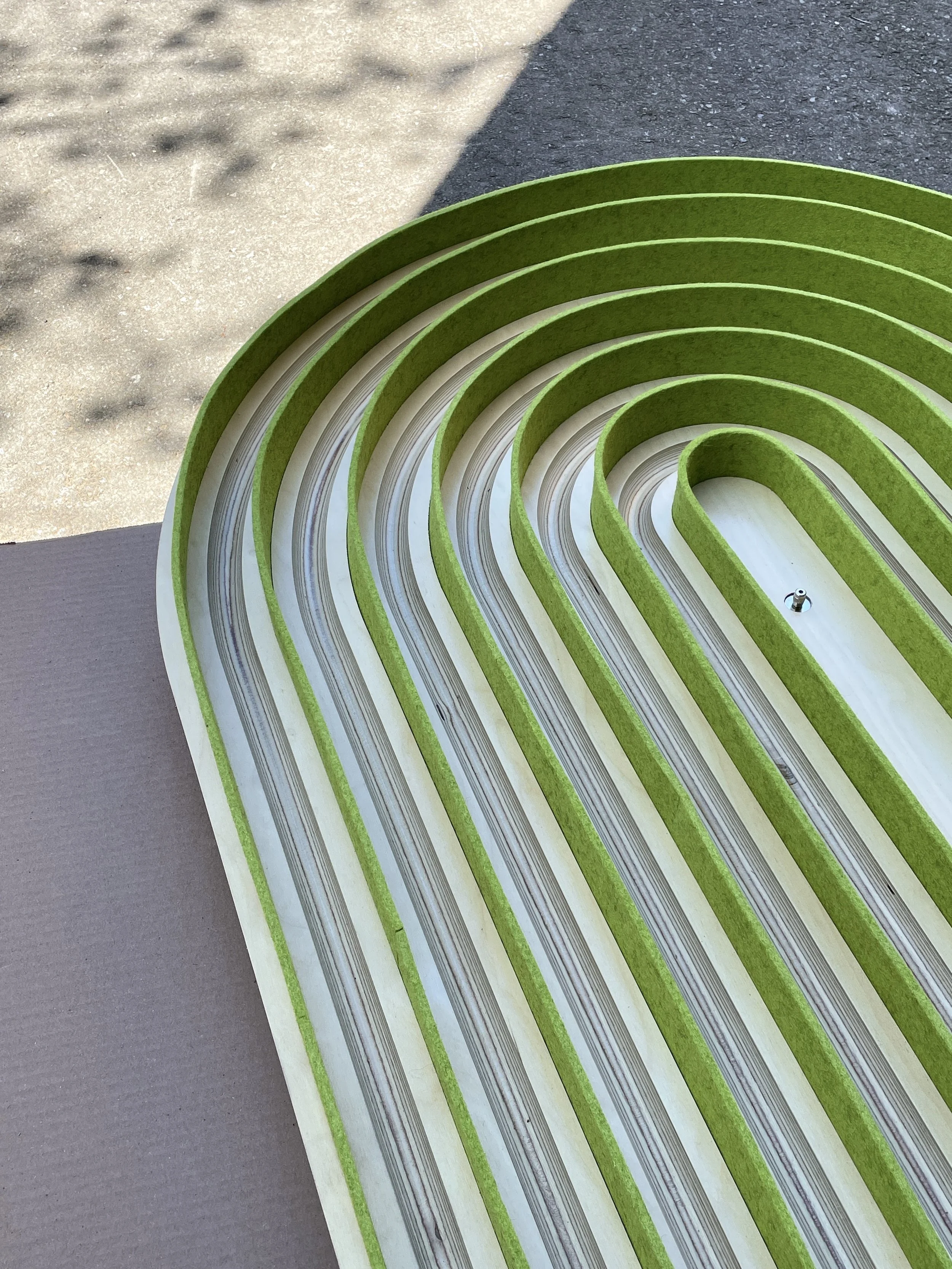

CRS Echo

The CRS-EC is the solution for commercial or hybrid residential spaces. It boasts an array of single-layer or dual-layer acoustic felt and smooth curvature for a warm and welcoming auditory experience.

LIGHT BASE

Linear Embedded | Round Profile

MODEL UPGRADES

Linear Continuous Anti-Glare

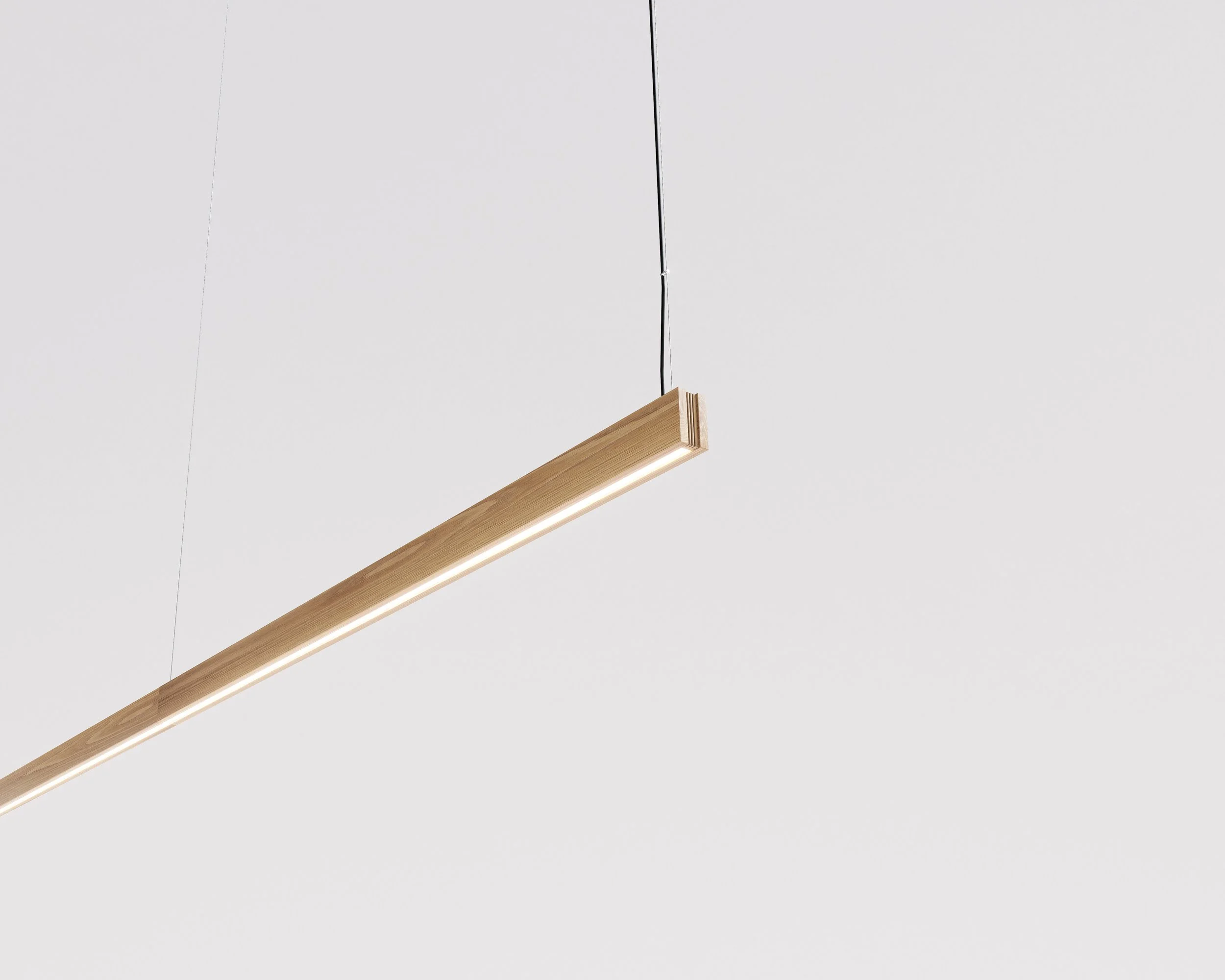

Linear Continuous

LIGHT BASE

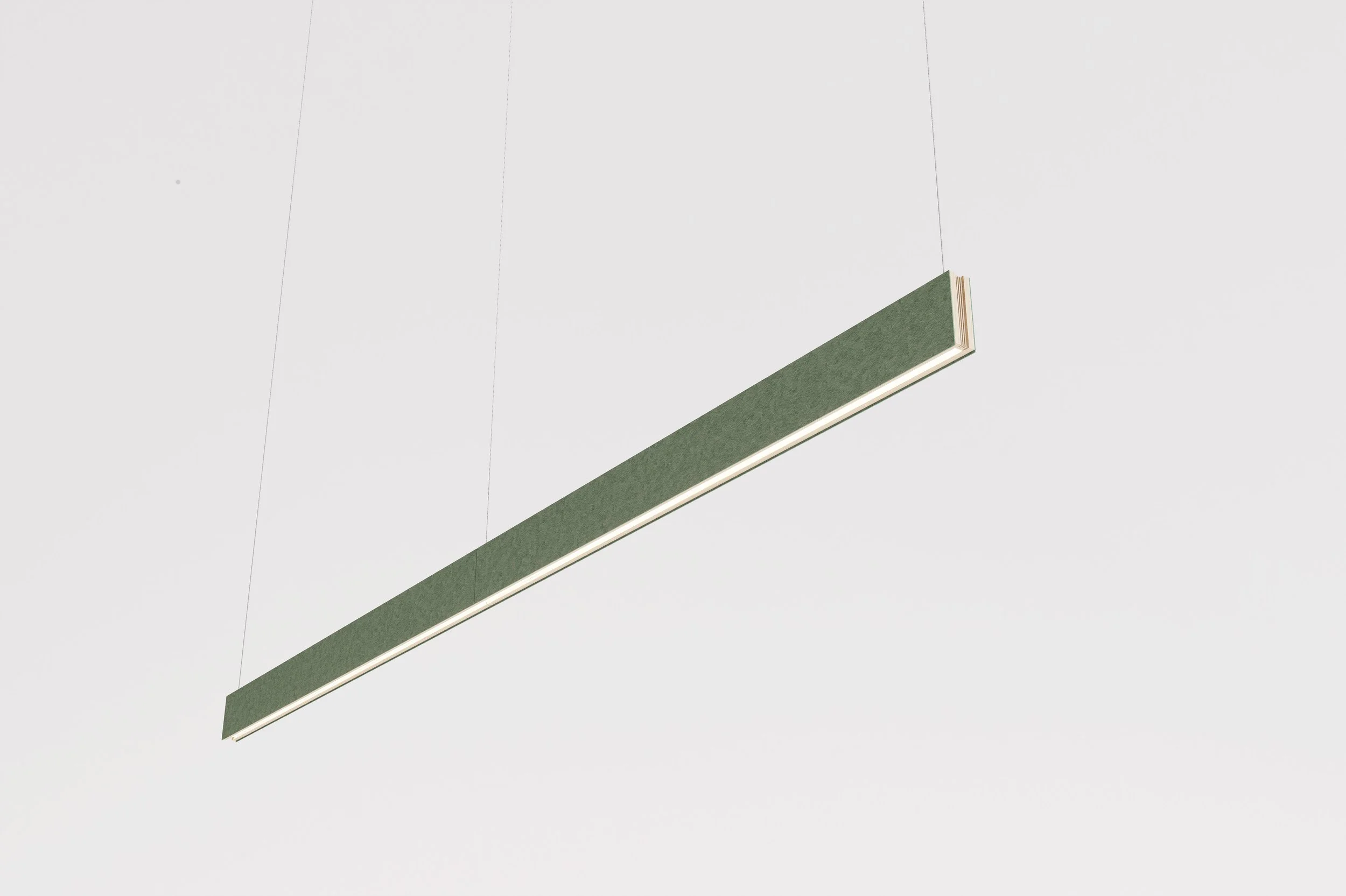

Linear Continuous Acoustic

MODEL UPGRADES

Linear Continuous Anti-Glare

Linear Continuous

LIGHT BASE

Dimensions

Technical + Mounting

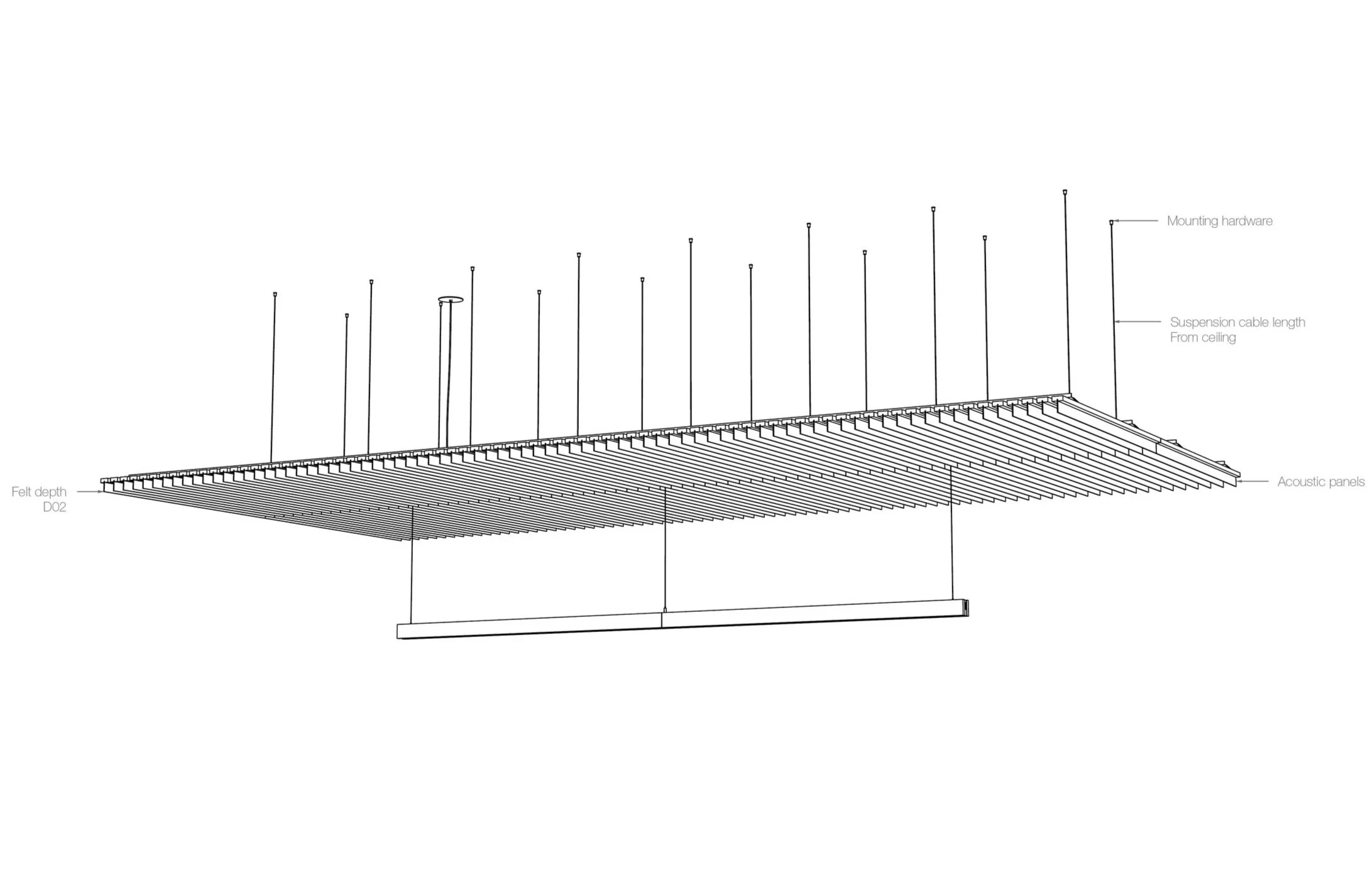

Acoustic Parameters

Part 1/2

Lighting Parameters

Part 2/2

Programmable Driver

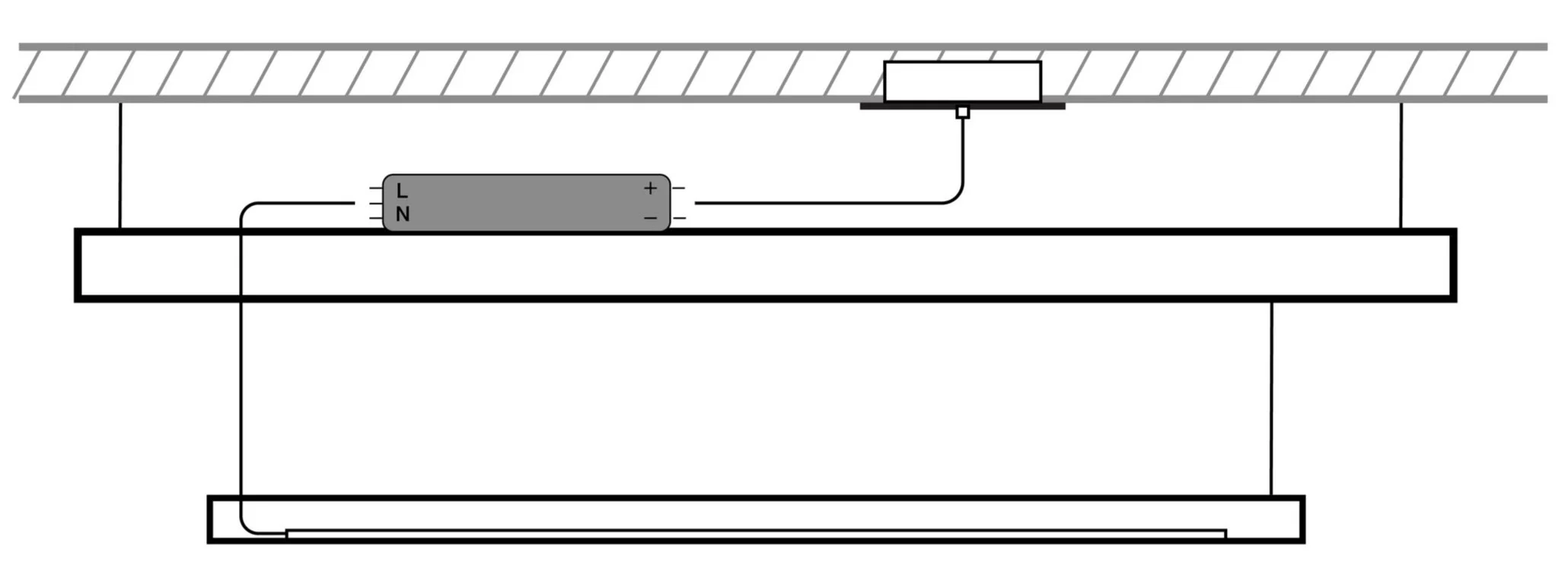

PROGRAMMABLE DRIVER

I | INTEGRATED ON FIXTURE

Direct low-voltage cables from the integrated driver box located on top of the acoustic panels with high-voltage power to the junction box in the ceiling.
