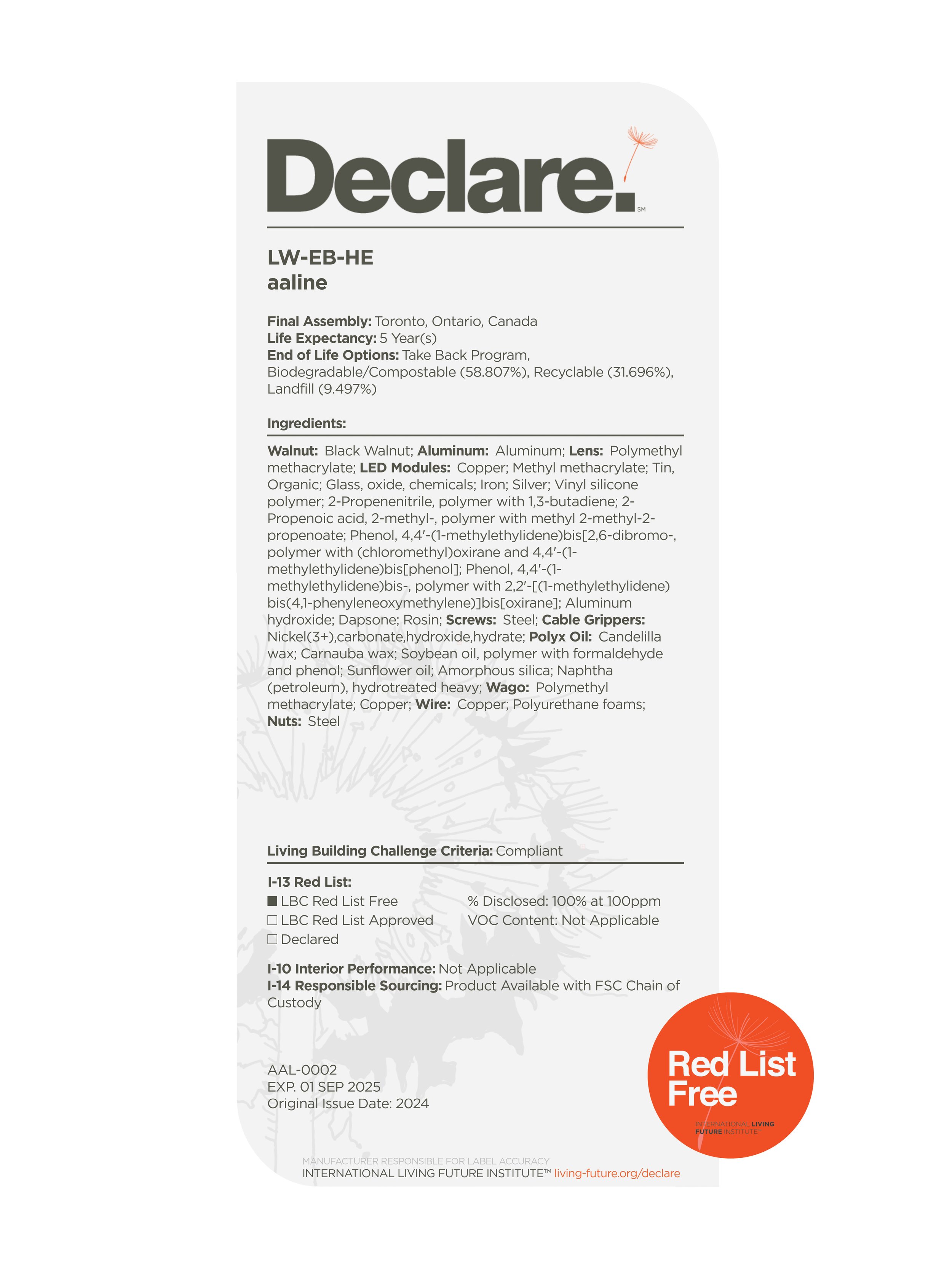

DECLARE CERTIFICATION ➔
The Linear High-Efficacy (LW-EB-HE) is aaline’s highest efficacy fixture at 132 lm/W. This system is fine-tunable with variable power settings, a wide range of colour temperatures, and optical solutions that can be adjusted individually between direct and indirect lighting needs.
SERIES: LW-EB
MODEL: HE
LUMEN OUTPUT + CONSUMPTION:
Low | 325 lm/ft, 2 W/ft
Standard | 662 lm/ft, 4 W/ft
High | 925 lm/ft, 6 W/ft
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
DECLARE CERTIFICATION ➔
The Linear High-Efficacy (LW-EB-HE) is aaline’s highest efficacy fixture at 132 lm/W. This system is fine-tunable with variable power settings, a wide range of colour temperatures, and optical solutions that can be adjusted individually between direct and indirect lighting needs.
SERIES: LW-EB
MODEL: HE
LUMEN OUTPUT + CONSUMPTION:
Low | 325 lm/ft, 2 W/ft
Standard | 662 lm/ft, 4 W/ft
High | 925 lm/ft, 6 W/ft
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
DECLARE CERTIFICATION ➔
The Linear High-Efficacy (LW-EB-HE) is aaline’s highest efficacy fixture at 132 lm/W. This system is fine-tunable with variable power settings, a wide range of colour temperatures, and optical solutions that can be adjusted individually between direct and indirect lighting needs.
SERIES: LW-EB
MODEL: HE
LUMEN OUTPUT + CONSUMPTION:
Low | 325 lm/ft, 2 W/ft
Standard | 662 lm/ft, 4 W/ft
High | 925 lm/ft, 6 W/ft
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens
-

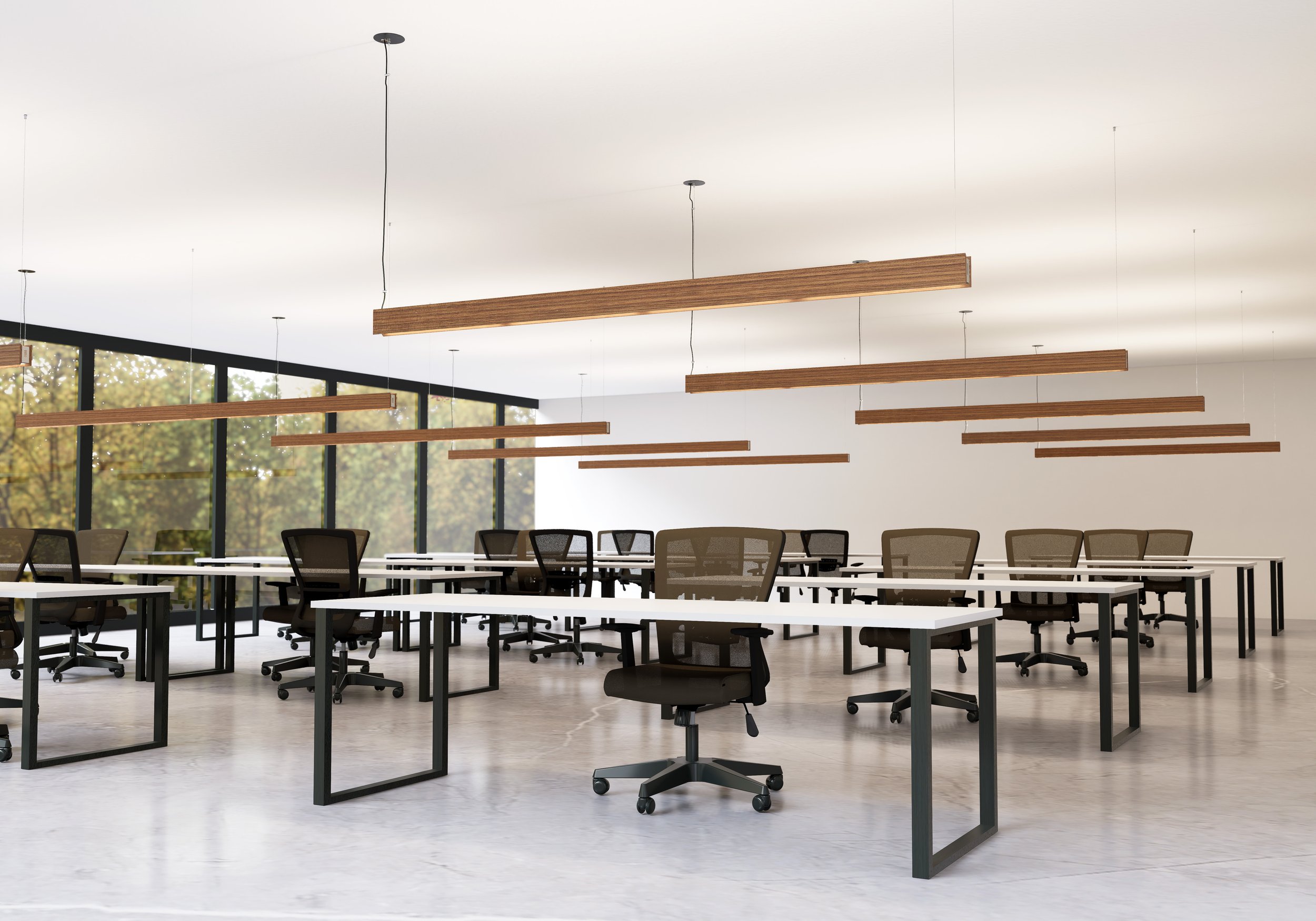

LARGE SCALE DESIGN
The LW-EB-HE is refined to suit larger scale commercial and institutional projects with high-end detailing and sustainable, quality materials with one of the lowest carbon footprints in the industry.Modular construction of the units allow for localized repairs as a part of our commitment to sustainable design and right to repair.
CUSTOMIZABLE + MODULAR
Envisioned by aaline's design team, the system is designed as a kit of parts that can be customized and fine-tuned to look and perform exactly as required by the project designers, engineers, and architects.HIGH-PERFORMANCE TECHNOLOGY
With integrated or remote driver systems as part of our standard collections, aaline can be the kit of parts spec-able in retrofit remodeling or new construction projects.SUSTAINABLE
Our products consist of 100% recyclable fixture components. -
PROFILE
2-5/8"W x 2-7/8"H
LENGTH
Min. 2’ - Infinite, Increments of 2'
Visible luminaire divide every 2'
LIGHT DISTRIBUTION
Direct
Indirect, Min. 6'
Direct + Indirect, Indirect is 50% of lm/ft
PROGRAMMABLE DRIVER ➔
Integrated
Remote
LUMEN OUTPUT
Low | 325 lm/ft, 2 W/ft
Standard | 662 lm/ft, 4 W/ft
High | 925 lm/ft, 6 W/ft
Custom upon request
OPTICS [DIRECT + INDIRECT INDIVIDUALLY]
Extra Wide | ~90° + 110°
Wide | ~60° + 110°
Oval | ~86° + 40°
Asymmetric
Double AsymmetricCIRCUIT
1
2, only available for Direct + Indirect
DIMMING
0-10V
TRIAC/ELV
DALI
LUTRON Ecosystem
CRI
80 | 132 lm/W
90 | 112 lm/W
Based on 4000K. Actual output may vary +/-5%.
COLOUR TEMPERATURE ➔
3000K
3500K
4000K
5000K
Selection affects efficacy. TBC in shop drawings. -
CANOPY
Black
White
CustomCABLE - INTEGRATED [HIGH VOLTAGE]:
Black
White
CABLE - REMOTE [LOW VOLTAGE]:
Clear Jacket with Silver Core
CABLE LENGTH:
5' [Standard]
Custom
MOUNTING OPTIONS - INTEGRATED ➔
Independent
Junction Box Support
T-Bar Support, for 15/16” t-bar width
MOUNTING OPTIONS - REMOTE ➔
Power Over Cable
T-Bar Support, For 15/16” t-bar width
CANOPY HARDWARE - JUNCTION BOX ONLY
Minimal
Match -
-
MATERIALS + FINISHING
END CAP + DIVIDE FINISH
