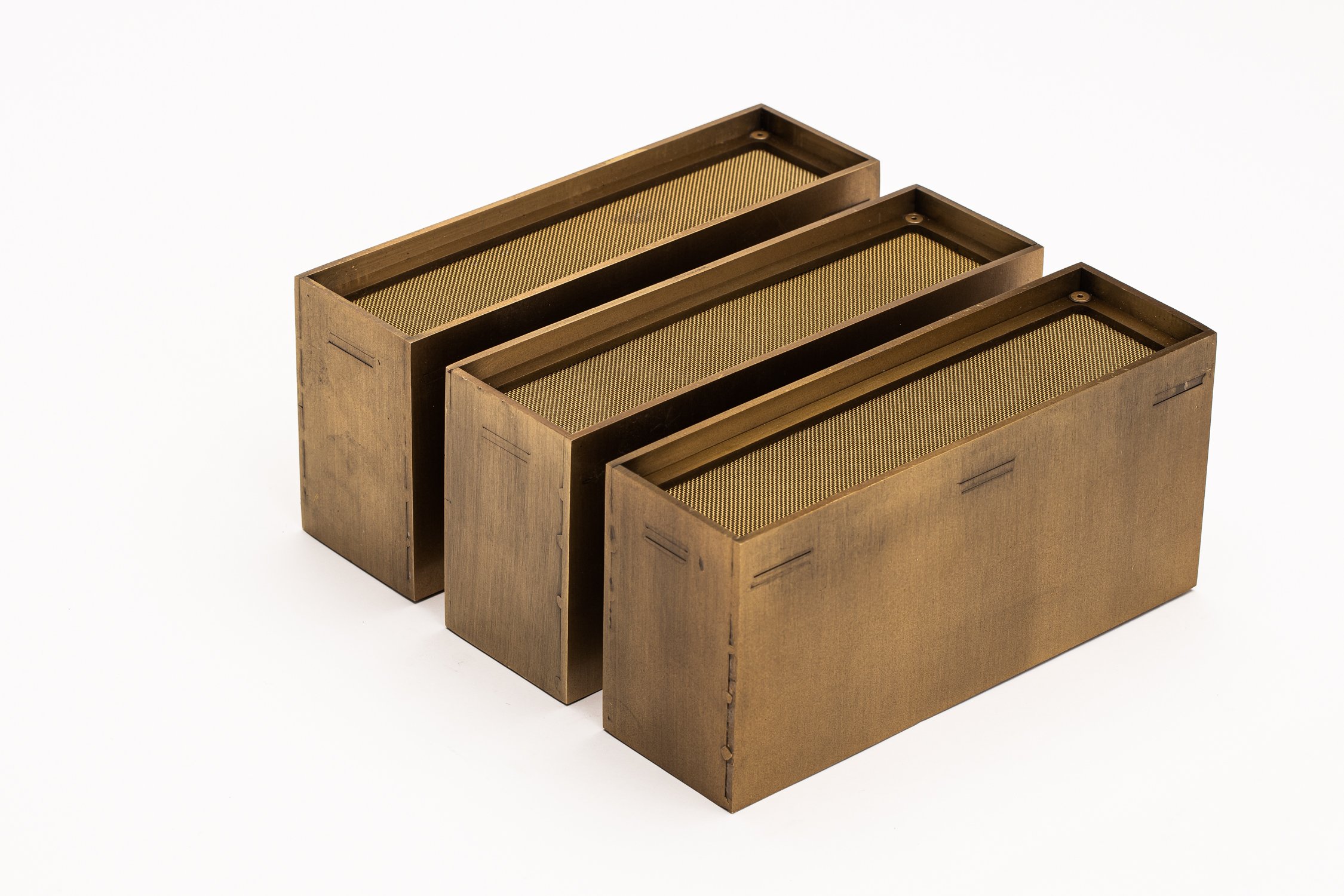

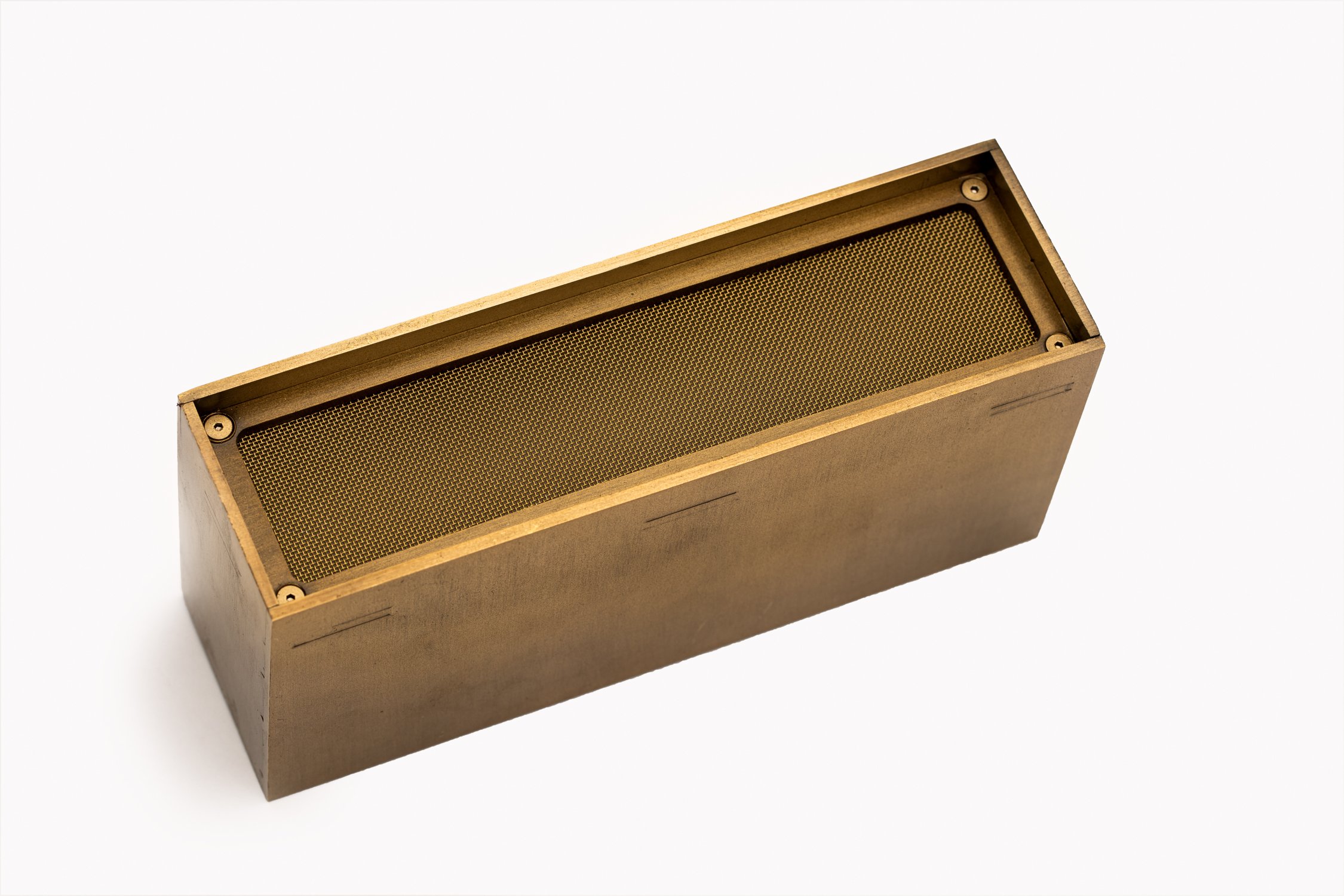

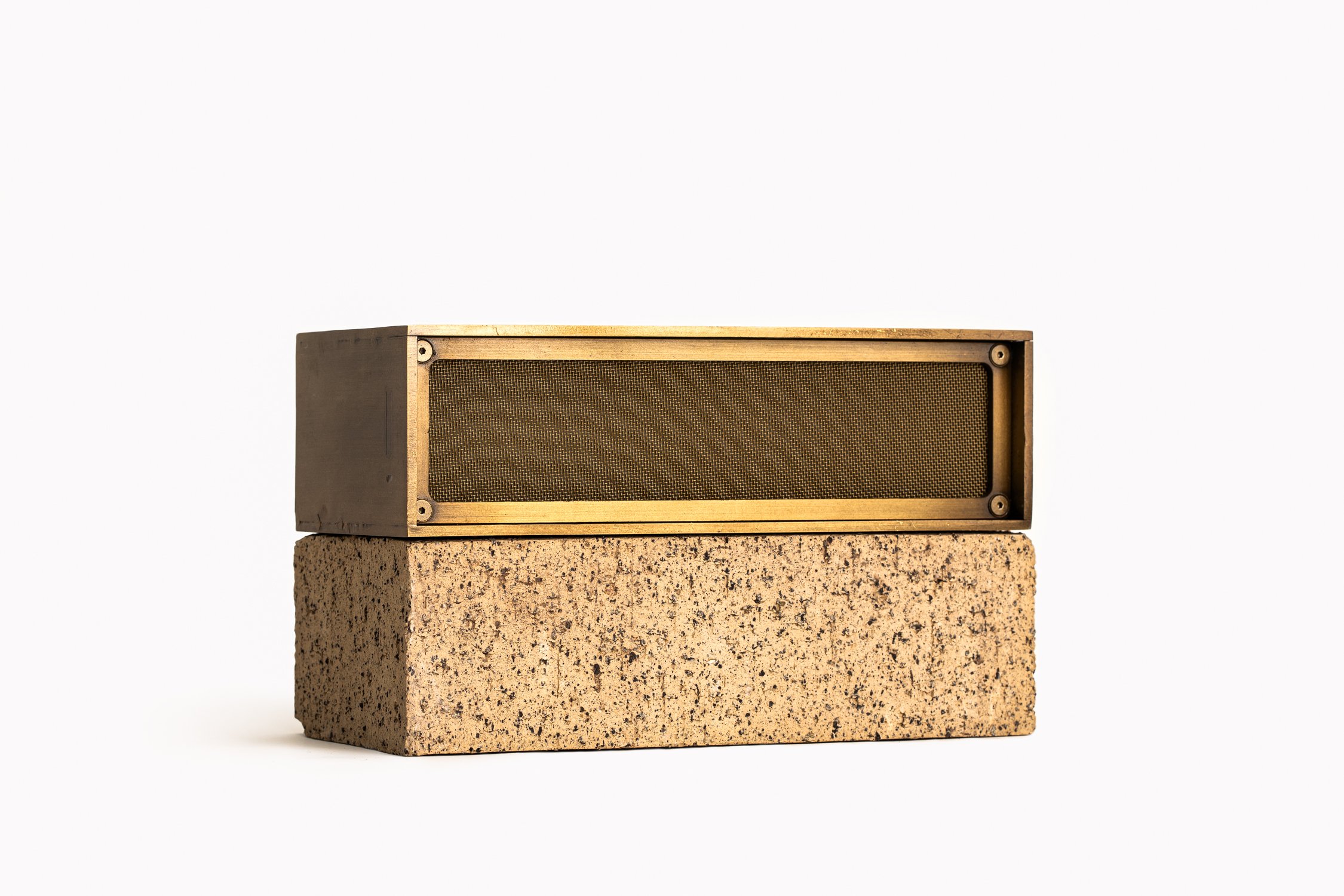

The OG Brick Light (OG-BL), made in collaboration with OG Architects, is the first of its kind in aaline’s exterior lighting offering. Encased in a durable metal exterior featuring a mesh lens, the OG Brick provides an unassuming elegance for a timeless exterior lighting solution. The OG Brick is certified for exterior locations. Available in a range of modular brick sizes, the OG Brick Light integrates seamlessly and effectively into the desired environment.
SERIES: OG
MODEL: BL
LUMEN OUTPUT + CONSUMPTION:
Single | 61 lm, 3.6 W
Double | 142 lm, 8.4 W
POWER INPUT: 110-277V AC, 47/63 Hz
OPTICS: PET diffuser + metal mesh
WATERPROOF: Yes, IP65
ARCHITECT'S NEWSPAPER
BEST LIGHT FIXTURE RUNNER UP 2024 ➔
REQUEST A QUOTE ➔
The OG Brick Light (OG-BL), made in collaboration with OG Architects, is the first of its kind in aaline’s exterior lighting offering. Encased in a durable metal exterior featuring a mesh lens, the OG Brick provides an unassuming elegance for a timeless exterior lighting solution. The OG Brick is certified for exterior locations. Available in a range of modular brick sizes, the OG Brick Light integrates seamlessly and effectively into the desired environment.
SERIES: OG
MODEL: BL
LUMEN OUTPUT + CONSUMPTION:
Single | 61 lm, 3.6 W
Double | 142 lm, 8.4 W
POWER INPUT: 110-277V AC, 47/63 Hz
OPTICS: PET diffuser + metal mesh
WATERPROOF: Yes, IP65
ARCHITECT'S NEWSPAPER
BEST LIGHT FIXTURE RUNNER UP 2024 ➔
REQUEST A QUOTE ➔
The OG Brick Light (OG-BL), made in collaboration with OG Architects, is the first of its kind in aaline’s exterior lighting offering. Encased in a durable metal exterior featuring a mesh lens, the OG Brick provides an unassuming elegance for a timeless exterior lighting solution. The OG Brick is certified for exterior locations. Available in a range of modular brick sizes, the OG Brick Light integrates seamlessly and effectively into the desired environment.
SERIES: OG
MODEL: BL
LUMEN OUTPUT + CONSUMPTION:
Single | 61 lm, 3.6 W
Double | 142 lm, 8.4 W
POWER INPUT: 110-277V AC, 47/63 Hz
OPTICS: PET diffuser + metal mesh
WATERPROOF: Yes, IP65
-
PROFILE
3-1/2" D x 2-1/4" H
SIZE
Single | 7-1/2" L x 3-1/2" D x 2-1/4" H | 61 lm, 3.6 W
Double | 15-1/4" L x 3-1/2" D x 2-1/4" H | 142 lm, 8.4 W
PROGRAMMABLE DRIVER ➔
IntegratedCOLOUR TEMPERATURE ➔
2700K, 90+ CRI
3000K, 90+ CRI
3500K, 80 and 90+ CRI
4000K, 80 and 90+ CRI -
MATERIALS + FINISHING
METAL FINISH
