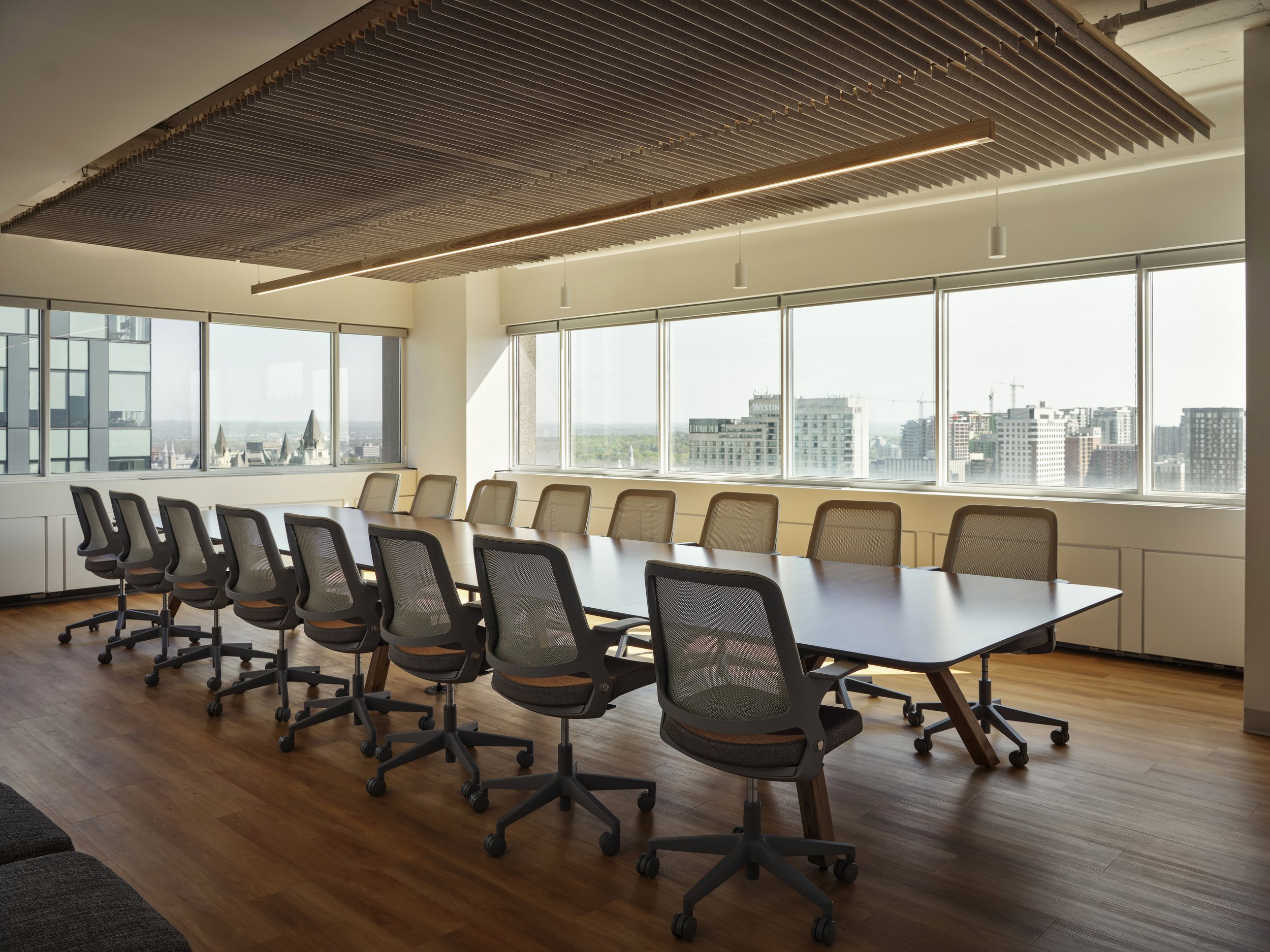

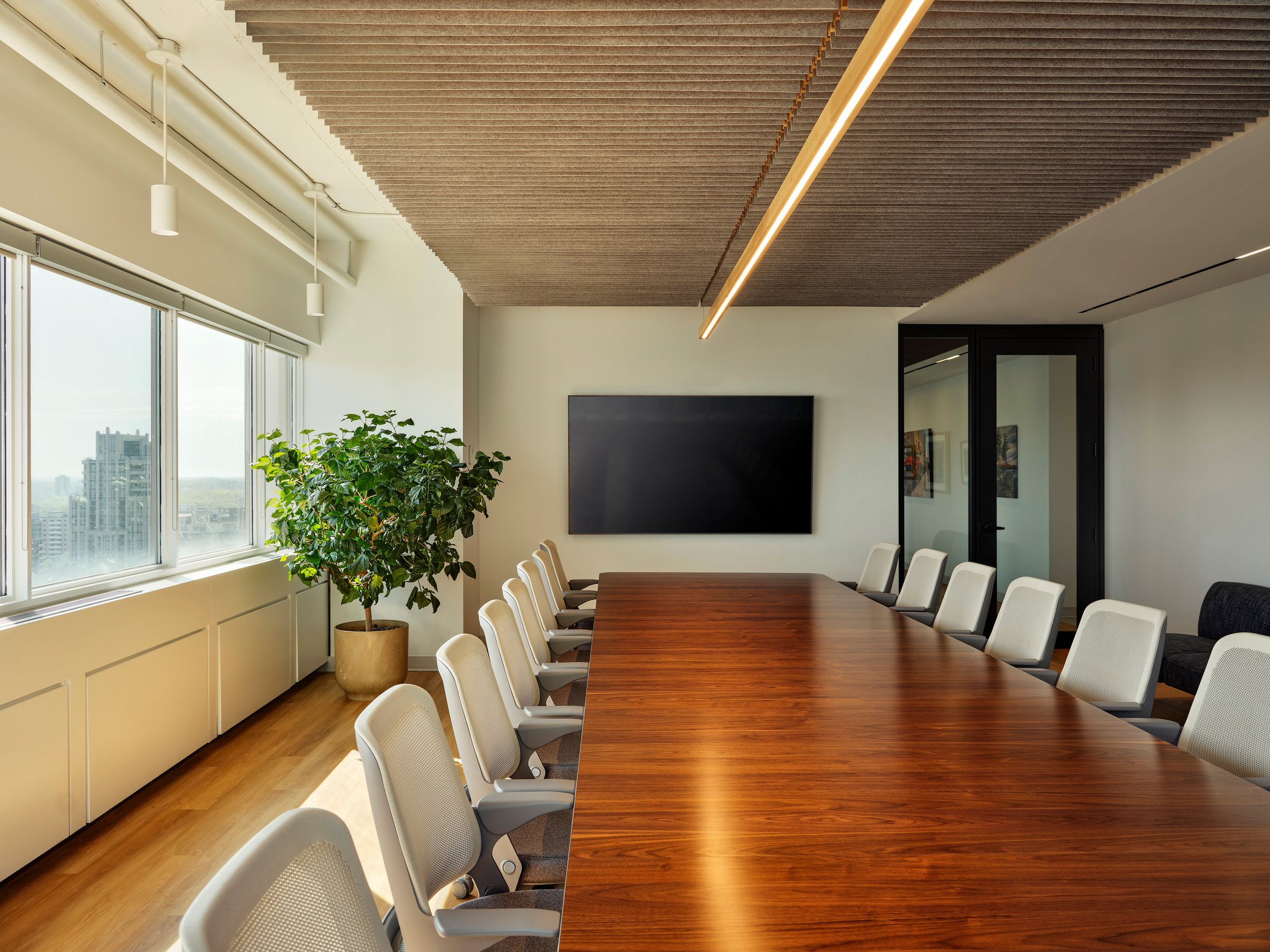

aaline’s Conference Room Systems are a stream-lined toolkit for tuning the perfect meeting room. The CRS-LN is a modification of our AP-PA and LW-EB-LC, with careful design considerations to combine these products for a minimal look and seamless installation. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.
The LW-EB-CRS-LC system is made for long runs of uninterrupted illumination through modular design. This system of virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures including dynamic whites.
SERIES: CRS
MODEL: LN
NRC RATING: Up to 1.0
LUMEN OUTPUT:
Opal | 460 lm/ft, 40 lm/W
High-Efficacy | 736 lm/ft, 64 lm/W
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 10 W/ft
OPTICS: PET film diffuser
CONFIGURE YOUR CRS ➔
CRS BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Conference Room Systems are a stream-lined toolkit for tuning the perfect meeting room. The CRS-LN is a modification of our AP-PA and LW-EB-LC, with careful design considerations to combine these products for a minimal look and seamless installation. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.
The LW-EB-CRS-LC system is made for long runs of uninterrupted illumination through modular design. This system of virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures including dynamic whites.
SERIES: CRS
MODEL: LN
NRC RATING: Up to 1.0
LUMEN OUTPUT:
Opal | 460 lm/ft, 40 lm/W
High-Efficacy | 736 lm/ft, 64 lm/W
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 10 W/ft
OPTICS: PET film diffuser
CONFIGURE YOUR CRS ➔
CRS BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Conference Room Systems are a stream-lined toolkit for tuning the perfect meeting room. The CRS-LN is a modification of our AP-PA and LW-EB-LC, with careful design considerations to combine these products for a minimal look and seamless installation. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.
The LW-EB-CRS-LC system is made for long runs of uninterrupted illumination through modular design. This system of virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures including dynamic whites.
SERIES: CRS
MODEL: LN
NRC RATING: Up to 1.0
LUMEN OUTPUT:
Opal | 460 lm/ft, 40 lm/W
High-Efficacy | 736 lm/ft, 64 lm/W
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 10 W/ft
OPTICS: PET film diffuser
-
LARGE SCALE DESIGN
The LW-EB-CRS-LC is refined to suit larger scale commercial and institutional projects with high-end detailing and sustainable, quality materials with one of the lowest carbon footprints in the industry.Modular construction of the units allow for localized repairs as a part of our commitment to sustainable design and right to repair.
CUSTOMIZABLE + MODULAR
Envisioned by aaline's design team, the system is designed as a kit of parts that can be customized and fine-tuned to look and perform exactly as required by the project designers, engineers, and architects.SUSTAINABLE
Our products consist of 100% recyclable fixture components. -
LENGTH [L]
System's total length in feet, Increments of 1'
WIDTH [W]
System's total width in feet, Increments of 1'
FELT DEPTH
1-1/2”
4"
6"
NRC RATING
Standard: 0.4
High*: Up to 1.0
*Additional panelized fibre panels for above panels -
FOR STANDARD LIGHTING
PROFILE
2-1/2"W x 2-3/4"H
LENGTH
Min. 3’ - Infinite, Increments of 1'
Visible seam where modules meet, up to every 8'
Power supply every 16'LIGHT DISTRIBUTION
Direct
Indirect
Direct + Indirect, Indirect is 94% of lm/ft
LIGHT ORIENTATION
Perpendicular
Parallel
LIGHT OFFSET
Distance between acoustic baffles and the light fixturePROGRAMMABLE DRIVER ➔
Integrated on acoustics
LUMEN OUTPUT
Opal | 460 lm/ft, 40 lm/W
High-Efficacy | 736 lm/ft, 64 lm/W
Anti-Glare | UGR<18
Selecting both anti-glare options further improves UGR rating
CIRCUIT
1
2, only available for Direct + IndirectDIMMING
0-10V
TRIAC/ELV
DALI
LUTRON Ecosystem
COLOUR TEMPERATURE ➔
2700K
3000K
3500K
4000K
Dim-To-Warm
Tunable White
INTEGRATED SENSOR
Daylight Sensor
PIR Occupancy Sensor
Daylight + Occupancy Sensor
Will be Lutron Sensor if Lutron EcoSystem dimming is selected -
SUSPENSION CABLE LENGTH
5' [Standard]
Custom
Suspension from ceiling
MOUNTING HARDWARE
Independent
T-Bar Support, For 15/16" t-bar width -
FOR STANDARD LIGHTING
CANOPY
Black
White
CustomCABLE - REMOTE [LOW VOLTAGE]:
Clear Jacket with Silver Core
CABLE LENGTH:
5' [Standard]
Custom
MOUNTING OPTIONS - REMOTE ➔
Power Over Cable -
-
MATERIALS + FINISHING
