CRS Echo
CONFIGURE YOUR CRS ➔
CRS BROCHURE ➔
REQUEST A QUOTE ➔

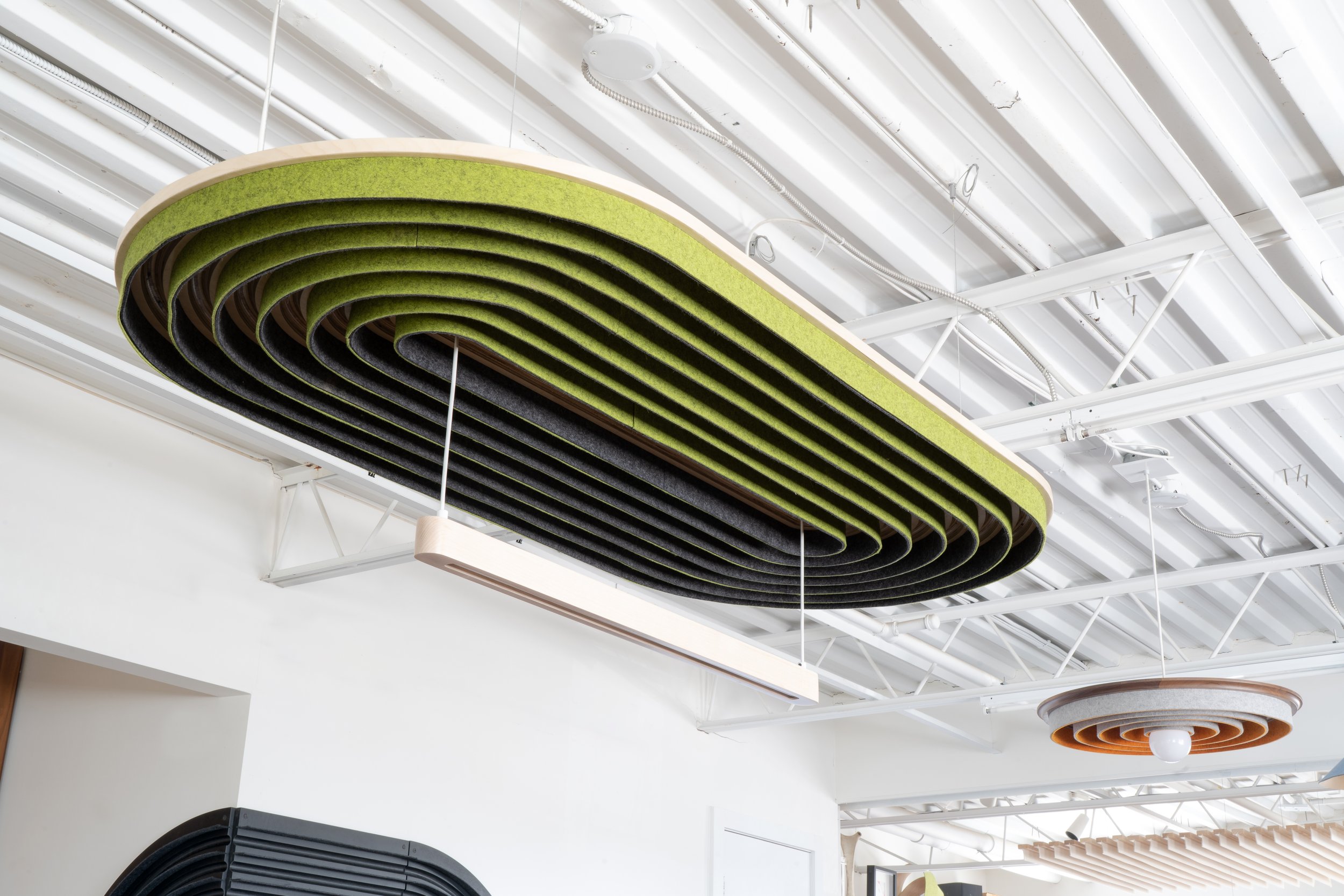

Consistent with the rest of the Echo Collection, this system is inspired by harmonic serialism and soft minimalism. The CRS Echo is designed to create a warm and welcoming auditory experience with control of specific acoustic and lighting parameters. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.
The CRS Echo is equipped with an integrated modification of aaline’s LW-EB, with a minimal profile and rounded edges. The LW-EB utilizes 90 CRI LED chips with a range of CCT available in 1 or 2 channel control.
SERIES: CRS
MODEL: EC
NRC RATING: Up to 1.0
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR CRS ➔
CRS BROCHURE ➔
REQUEST A QUOTE ➔
Consistent with the rest of the Echo Collection, this system is inspired by harmonic serialism and soft minimalism. The CRS Echo is designed to create a warm and welcoming auditory experience with control of specific acoustic and lighting parameters. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.
The CRS Echo is equipped with an integrated modification of aaline’s LW-EB, with a minimal profile and rounded edges. The LW-EB utilizes 90 CRI LED chips with a range of CCT available in 1 or 2 channel control.
SERIES: CRS
MODEL: EC
NRC RATING: Up to 1.0
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR CRS ➔
CRS BROCHURE ➔
REQUEST A QUOTE ➔
Consistent with the rest of the Echo Collection, this system is inspired by harmonic serialism and soft minimalism. The CRS Echo is designed to create a warm and welcoming auditory experience with control of specific acoustic and lighting parameters. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.
The CRS Echo is equipped with an integrated modification of aaline’s LW-EB, with a minimal profile and rounded edges. The LW-EB utilizes 90 CRI LED chips with a range of CCT available in 1 or 2 channel control.
SERIES: CRS
MODEL: EC
NRC RATING: Up to 1.0
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
-
SUITABLE PROJECTS
Perfect for environmentally low-impact, sustainable architectural projects in line with LEED™ standards as well as certified projects and Living Building Challenge.
CUSTOMIZABLE + MODULAR
Envisioned by aaline's design team, the system is designed as a kit of parts that can be customized and fine-tuned to look and perform exactly as required by the project designers, engineers, and architects.SUSTAINABLE
Our products consist of 100% recyclable fixture components. -
SIZE
Small | 4' x 2' | 2' light length
Medium | 6' x 3' | 3' light length
Large | 8' x 4' | 4' light length
FELT DEPTH
2"FELT LAYERS
Single layer
Double layer -
FOR STANDARD LIGHTING
PROFILE
1-3/4"W x 1-7/8"H
LENGTH
Small | 4’ x 2’ | 2’ light length
Medium | 6’ x 3’ | 3’ light length
Large | 8’ x 4’ | 4’ light lengthLIGHT DISTRIBUTION
Direct
Indirect, Min. 3' - Max. 8'
Direct + Indirect, Indirect is 94% of lm/ft
LIGHT OFFSET
Distance between acoustic baffles and the light fixturePROGRAMMABLE DRIVER ➔
Integrated on acoustics
CIRCUIT
1
2, only available for Direct + IndirectDIMMING
0-10V
TRIAC/ELV
DALI
LUTRON Ecosystem
COLOUR TEMPERATURE ➔
2700K
3000K
3500K
4000K -
SUSPENSION CABLE LENGTH
5' [Standard]
Custom
Suspension from ceiling
MOUNTING HARDWARE
Independent
T-Bar Support, For 15/16" t-bar width -
FOR STANDARD LIGHTING
CANOPY
Black
White
CustomCABLE - REMOTE [LOW VOLTAGE]:
Clear Jacket with Silver Core
CABLE LENGTH:
5' [Standard]
Custom
MOUNTING OPTIONS - REMOTE ➔
Power Over Cable -
-
MATERIALS + FINISHING
WOOD FRAME
